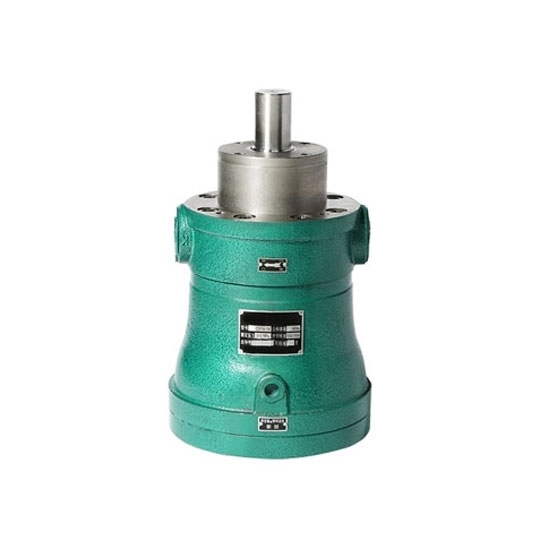

    80 hp Single Acting Axial Piston Pump

    Buy online 80 hp variable displacement axial piston pump, high power, support customization, smooth running, designed for open circuits in mobile hydraulic systems, operating on the swashplate principle.
    30-day Returns
    Free Shipping
    Delivery date: 2-12 days

    Variable axial piston pump power 80 hp, rated pressure 31.5 MPa, can change the flow rate provided to the load, widely used in machine tools forging, metallurgy, engineering, mining, shipping and other machinery and other hydraulic transmission systems.


    • Model: ATO-PP-63YCY
    • Max Drive Power: 80 hp (59 kW)
    • Driving Method: Hydraulic
    • Theoretic Flow: 1000rpm (63L), 1500rpm (94.5L)
    • Number of Impellers: Single stage
    • Pump Shaft Position: Horizontal
    • Nominal Displacement: 63 cc/rev
    • Nominal pressure: 31.5 Mpa
    • Material: Cast iron
    • Weight: 71 kg
    • Warranty: 12 Months

    80 hp Axial Piston Pump Dimension (unit: mm)

    Axial piston pump dimension

    B b bo (N9) b1 b2 D0 D1 (f9) D2 D3 d (h6) d1 d3
    258 200 12 74 104 155 120 190 225 40 M42 x 2 M18x 1.5

     Hydraulic piston pump dimension

    h1 L I I0 I1 I2 I3 I4 I5 t d0 x h0
    108 365 60 50 4 62 122 157 300 42.8 M12 x 25

    Axial Piston Pump Detail

    Axial piston pump detail
    Tips: Application of piston pump

    The piston pump is suitable for high pressure and small flow rate, especially when the flow rate is less than 100 m3/hour and the discharge pressure is more than 9.8 MPa, it shows its high efficiency and good operating performance. It has good suction performance and can pump various different mediums and liquids of different viscosities. Therefore, it is widely used in petrochemical industry, machinery manufacturing industry, paper making, food processing, pharmaceutical production, etc. Low to medium speed piston pump speed is low, can be operated by human and animal dragging, suitable for rural water supply and small irrigation.
