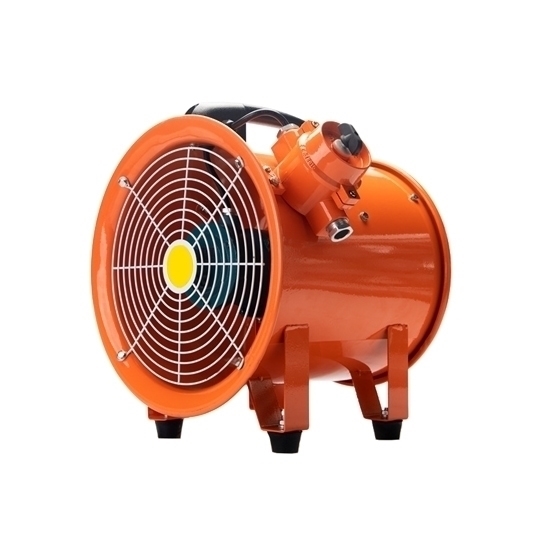

900W Explosion Proof Portable Exhaust Fan

900W explosion proof portable exhaust fan is a specialized device designed to safely remove hazardous gases, fumes, or combustible materials from an area. This portable ventilation fan is constructed using durable materials and engineered with stringent safety measures to prevent the ignition of potentially explosive substances.

Specification

• Model: ATO-BSFT-400
• Axis Power: 900W
• Motor Power: 900W
• Voltage (Optional): 220VAC, 380VAC, 110VAC
• Ventilation Duct: 5m (Default)/ Contact Us for Other Sizes
• Fan Diameter: 400mm (16 inch)
• Impeller Diameter: 390mm (15.5 inch)
• Air Volume: 5860~6840m3/h
• Static Pressure: 750~800Pa
• Rotating Speed: 2800r/min
• Frequency: 50/60Hz
• Explosion Proof Grade: ExdⅡBT4
• Weight: 32kg

Detail

Tips: What is an explosion proof portable exhaust fan?

An explosion-proof portable exhaust fan is a specialized ventilation device designed to safely extract hazardous gases, fumes, or airborne particles from a potentially explosive environment. It is constructed using materials and engineering techniques that prevent the fan from becoming an ignition source itself.

The fan is built to withstand and contain internal explosions, ensuring that any sparks, flames, or hot surfaces generated inside the fan are not released into the surrounding atmosphere. This feature helps to minimize the risk of igniting flammable substances present in the environment.

Explosion-proof portable exhaust fans typically have robust enclosures made of durable materials, such as cast aluminum or stainless steel, which are capable of withstanding high pressures. They also incorporate explosion-proof motors and electrical components that are designed to prevent sparks or electrical arcs that could trigger an explosion.

These fans are commonly used in industrial settings, chemical plants, refineries, manufacturing facilities, and other environments where there is a potential for explosive atmospheres due to the presence of flammable gases, vapors, or dust particles. Their portable nature allows for flexible placement and easy relocation as needed.
