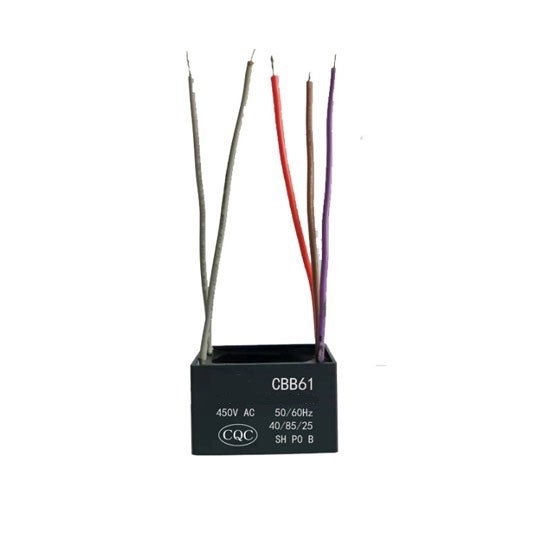

    450V Ceiling Fan Capacitor, 4μF+5μF+6μF

    Ceiling capacitor capacity value 4μF+5μF+6μF,equivalent series resistance 3800ESR, dielectric material film capacitor,rated voltage 450V/500V,capacitor size 48 x 27 x 40mm, suitable for controlling the speed of single-phase motor in 50Hz/60Hz AC power system.
    SKU: ATO-FC-CBB61-456
    This product has a minimum quantity of 100
    Free Shipping Worldwide
    Delivery date: 10-12 days

    Selling cheap ceiling fan capacitor, capacity 4mfd+5mfd+6mfd, tolerance 5%, if the ceiling fan work deceleration or can not work or can not work at different speed, please check first whether the capacitor is burned out or become weak, if so, you need to replace the new capacitor.


    • Model: ATO-FC-CBB61-456
    • Capacity: 4μF+5μF+6μF
    • Rated Voltage: 450V/500V
    • Tolerance: ±5%
    • Withstand Voltage: 2. 0 Un (2s)
    • Loss: (DF)≤0.0010 100Hz
    • Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
    • Rated Frequency: 50/60Hz
    • Climate Category: 40/85/23
    • Scope of Application: Start, run
    • Appearance: Rectangular
    • Lead Out Method: Cord, pin, insert
    • Dielectric Material: Organic thin film
    • Dimension: 48(W) x 27(L) x 40(H)mm
    • Certificate: CE, CQC

    5 Wire Ceiling Fan Capacitor Connection Diagram

    Ceiling fan capacitor circuit diagram
    Tips: Does a single-phase motor have to be equipped with a capacitor?

    Not all single-phase motors have to be equipped with capacitors either. The following motors do not need capacitors:
    1. series excitation motor
    2. shaded-pole motor
    3. Split-phase motors
    4. Do not need to match the capacitor
