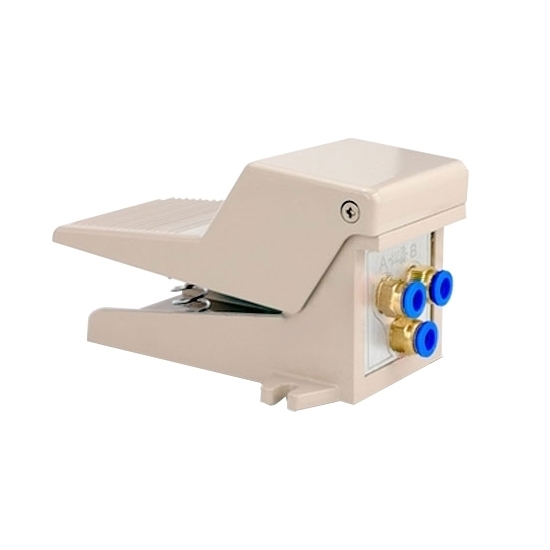

    Pneumatic Foot Pedal, 5 Way 2 Position, with Pneumatic Fitting

    5 out of 5 based on 1 reviews | Write a review
    Pneumatic foot pedal switch with 6mm pneumatic fitting, 5 way 2 position, direct-acting design, stable and reliable, pneumatic foot pedal valve is the use of air pressure to control the reversing valve, the use of air pressure to move the main spool, change the direction of air flow.
    SKU: ATO-PFD-4F21086
    This product has a minimum quantity of 5
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    2 position 5 way pneumatic foot operated pedal valve for sale, inlet and outlet is 1/4",  pneumatic fitting optional 6mm, 8mm and 10mm, operating pressure range: 0~0.8 MPa (0~114 psi), widely used in industrial work.


    • Model: ATO-4F210-086
    • Working Medium: Air
    • Action Mode: Foot control direct action
    • Port Size: PT 1/4
    • Pneumatic Fitting: 6mm, 8mm, 10mm
    • Number of Positions: 5 Way 2 position
    • Operating Pressure Range: 0~0.8 MPa (0~114 psi)
    • Pressure Resistance: 1.5 MPa (215 psi)
    • Working Temperature: -20~70℃
    • Material: Aluminum alloy
    • Weight: 490g


    • Aluminum pedal, surface oxidation, corrosion resistance and oxidation resistance.
    • Direct-acting design, easy to operate, more stable and reliable, high-quality material, long service life.
    • The internal thread of the pneumatic foot pedal valve is clear and standard, with good sealing performance, not easy to leak, and without burrs.
    • Bold spring, good quality and durable, not easy to rust.

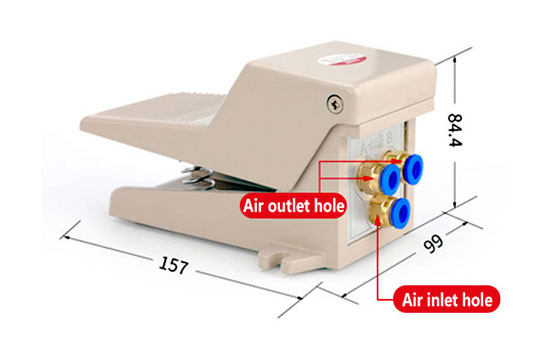

     5 Way 2 Position Pneumatic Foot Pedal Dimension

    Pneumatic foot pedal dimension

    Pneumatic Foot Pedal Details

    2 Way pneumatic foot pedal detail

    Tips: Why do you need a pneumatic foot switch?

    In many cases, a foot switch is used because it allows the user to perform multiple tasks by operating a machine or computer "hands-free". If the user is in a call center, the footswitch can be used to answer calls so that the user can operate the computer with both hands.

    Using a foot switch also ensures that the workspace is kept clean and tidy. Leaving the foot switch on the floor means more room on the table, and using a manual control or hand switch won't have the same effect.
