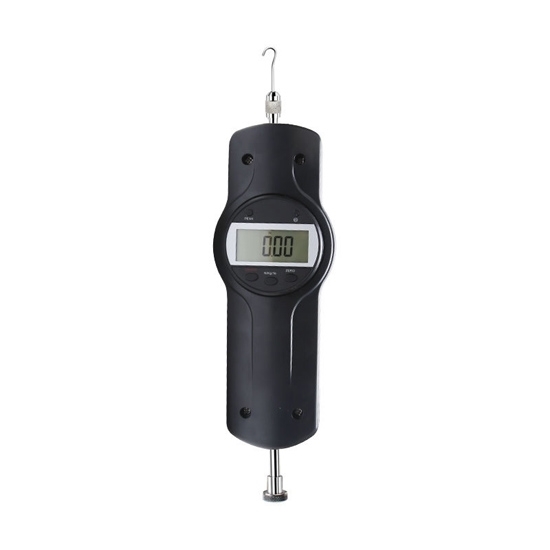

    Push Pull Force Gauge 10N/ 20N/ 30N to 500N

    Spring force gauge for sale, push pull force gauge with capacity 10N/ 20N/30N to 500N. Spring force gauge has optional SI unit N (newton), kg (kilogram), lb (pound) available for mutual conversion with high precision and high efficiency. 1.5V lithium battery power supply, automatically shut down if there is no operation for ten minutes. Measurement accuracy reaches 0.01N with peak mode and real time mode. Widely applicable to product push-pull load test, insertion force test, destruction test, etc.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Push force gauge capacity from 10N/ 20N/ 30N to 500N, SI unit N (newton), kg (kilogram), lb (pound) can be selected and available for mutual conversion. Portable product with high precision, measurement accuracy reaches 0.01N. Powered by 1.5V lithium battery.


    Model ATO-DF-10 ATO-DF-20 ATO-DF-30 ATO-DF-50 ATO-DF-100 ATO-DF-200 ATO-DF-300 ATO-DF-500
    Capacity (N) 10N 20N 30N 50N 100N 200N 300N 500N
    Division value (N) 0.01N 0.01N 0.01N 0.01N 0.1N 0.1N 0.1N 0.1N
    Division value (kg) 0.001kg 0.001kg 0.001kg 0.001kg 0.01kg 0.01kg 0.01kg 0.01kg
    Precision ±1%
    Button mode Peak mode and Real-time mode
    Voltage 3V
    Power supply Button Battery
    Battery continuous use time  about 15 hours
    Working temperature  5℃~35℃
    Battery Life  3 months
    Weight 0.09 (kg)

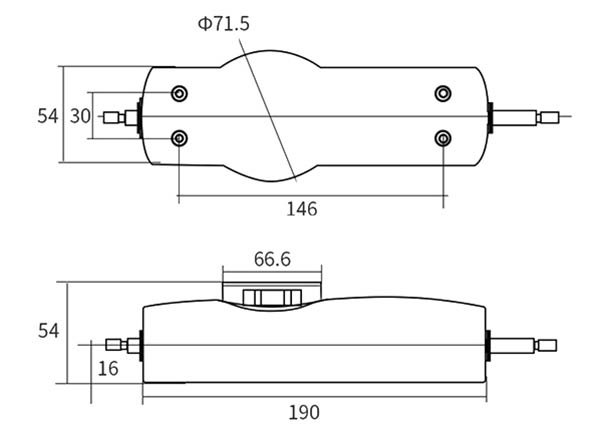

    Details (mm)

    Push pull force gauge size


    1. Push pull force gauge equipped with digital display for easy reading and 3V power supply.
    2. Capacity 10N/ 20N/30N to 500N, high precision that measurement accuracy reaches 0.01N.
    3. Light weight, small size, easy to carry.
    4. Optional unit: N (newton), kg (kilogram), lb (pound) three units of measurement are available for mutual conversion.
    5. Push pull meter is powered by 1.5V lithium battery, and it will automatically shut down if there is no operation for 10 minutes.
    6. Push pull meter designed two mode: peak mode and real time mode, easy to use.

    Tips: What is spring push-pull gauge?

    1. There are two types of pointer push-pull gauges: flat plate and cylinder. These two types are different in shape, and the selection is mainly due to the range. The range of the push-pull gauge is 100g, 150g, 250g, 500g, etc.
    2. It should be based on the approximate range to be measured and not exceed its range, which is easy to damage the push-pull gauge. It is also unfavorable to choose too large, so that it is difficult to observe the readings and the accuracy is low.
    3. Secondly, when measuring, first observe whether the pointer is at the zero position, and if not, adjust it to the zero position. This point is sometimes easily overlooked. Often after a measurement, the pointer is not at zero, and the measured values are all wrong.
    4. The third is to pay attention to the reading method when measuring. Eyes should look straight at the pointer, do not squint, and minimize reading errors. There are two main types of numerical labels for the dynamometer, namely grams and newtons, so be careful not to confuse them.
