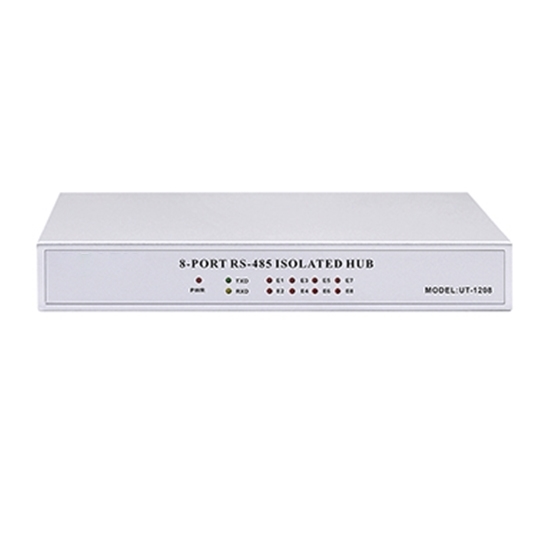

    RS-232/ RS-485 to RS-485 Hub, 8 Ports

    5 out of 5 based on 1 reviews | Write a review
    $303.97
    Cost-effective RS-232/ RS-485 to RS-485 hub with 8 ports, 300-115.2Kbps baud rate, asynchronous half-duplex operating mode, terminal block connector, 5000m (9600bps) transmission distance. It is widely used in highway toll system, traffic monitoring system and power system.
    SKU: ATO-UT-1208
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Cheap Cost-effective RS-232/ RS-485 to RS-485 hub with 8 ports, -40℃ to 85℃ operating temperature, RS-232C & RS-485 input interface.

    Specification

    Model UT-1208
    Standards RS-232/485 EIA/ TIA
    Input interface RS-232C & RS-485
    Output interface 8 ports RS-485
    Baud rate 300-115.2Kbps
    Transmission distance 5000m (9600bps)
    Operating mode Asynchronous half-duplex
    Connector Terminal block
    Dimension 210mm*130mm*32mm
    Operating temperature -40℃ to 85℃
    Relative humidity 5% to 95%
    Certificates RoHS, CE, FC
    Warranty 12 months

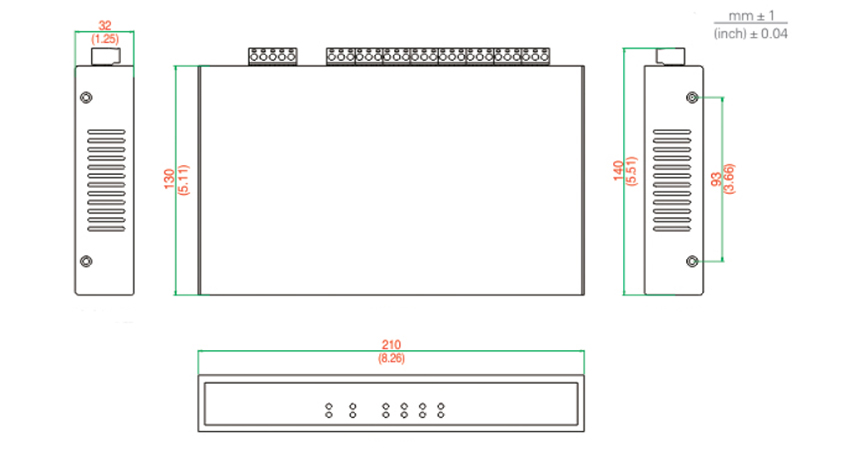

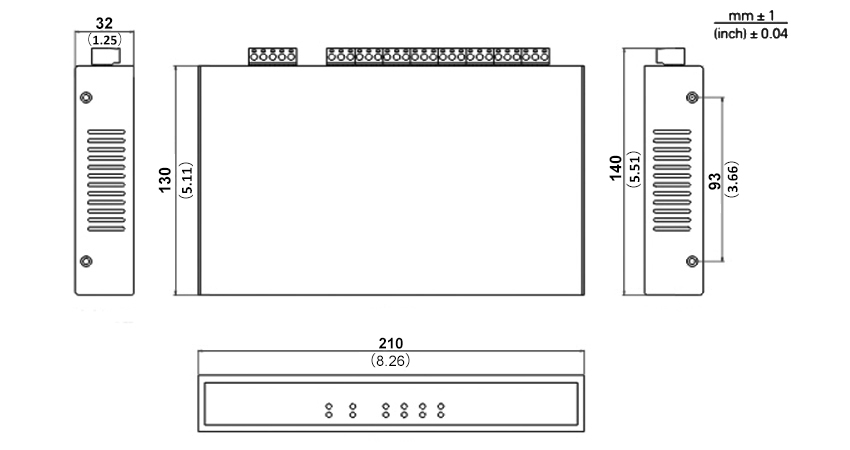

    Dimension (mm/ inch)

    Dimension of RS232 to RS485 hub of 8 ports

    Tips: The Classification of Hub
    HUB can be divided into passive HUB, active HUB, smart HUB and other HUB according to the way of processing the input signal.
    Passive HUB:
    It is the worst type, does not do any processing to the signal, does not extend the transmission distance of the medium, and has a certain impact on the signal. Each computer connected to this HUB can receive signals from all other computers on the same HUB.
    Active HUB:
    The difference between an active HUB and a passive HUB is that it can amplify or regenerate the signal, so that it extends the effective transmission distance between the two hosts.
    Smart HUB:
    In addition to all the functions of an active HUB, the intelligent HUB also has network management and routing functions. In the smart HUB network, not every machine can receive the signal, only the computer with the same address as the signal destination address can receive it. Some smart HUBs can choose the best path by themselves, which has a good management of the network!

    Existing reviews of RS-232/ RS-485 to RS-485 Hub, 8 Ports
    Robust and Reliable Hub with Extraordinary Performance
    I purchased the Hub for managing multiple RS-485 devices in our industrial setup, and I must say it has performed exceptionally well. Here are the key points based on my experience:

    Build Quality and Design:
    The hub is well-built and feels durable and suitable for industrial environments. The design is straightforward with clear labeling for each port, which makes installation and maintenance hassle-free.

    Functionality:
    The hub effectively converts RS-232 signals to RS-485 and allows communication with up to 8 RS-485 devices simultaneously. This flexibility is crucial for our operations as it simplifies the integration of various equipment without needing multiple converters.

    Reliability:
    In terms of reliability, the hub has been rock-solid. We haven't encountered any connectivity issues or signal drops since installation. This reliability is crucial for maintaining continuous operations without disruptions.

    Ease of Use:
    Setting up the hub was straightforward. It comes with comprehensive documentation that helped us configure it quickly. The ports are easily accessible, and the LED indicators for power and communication activity provide real-time status updates.

    Compatibility:
    It supports a wide range of baud rates and is compatible with different RS-485 devices, which is essential for our diverse equipment lineup.

    Value for Money:
    Considering its robust performance and build quality, I find the hub to be a worthwhile investment. It offers excellent value for the price, especially when compared to other options on the market.

    Conclusion:
    Overall, the RS-232/RS-485 to RS-485 Hub, 8 Ports has exceeded my expectations. It's reliable, easy to use, and offers seamless integration for managing multiple RS-485 devices. Whether you're setting up a new system or expanding an existing one, this hub is definitely worth considering.
    From: Adam | Date: 19/06/2024
