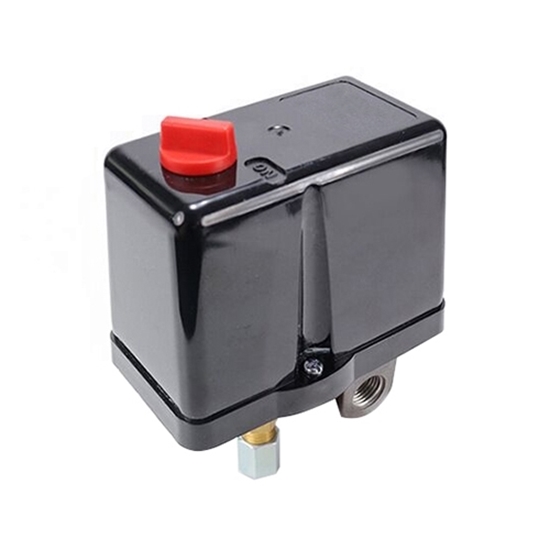

    Water Pump Pressure Switch 1.0-16.0bar

    Water pump pressure switch with IP54 protection for sale, rated voltage/current 400VAC-3, 16A/25A. Come with four-way base and compact shell made of cast aluminum. Equipped with relief valve pressure switch to avoid overloading. Pressure adjustment range 1.0-16.0bar, optional interface standard 1/4 or 1/2NPT, G1/4 or 1/2 internal thread. Used in Air compressor, pump equipment, screw machine equipment and pressure gauge.
    SKU: ATO-LF18
    This product has a minimum quantity of 2
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Water pump pressure switch 1.0-16.0bar with compact shell, four-way base allows for easier installation of exhaust valves and pressure gauges. Come with relief valve to avoid overload. Apply in hydropower, tap water, petroleum.


    Model ATO-LF18
    Pressure adjustment range 1.0-5.0bar 2.0-8.0bar 3.0-11.0bar 4.0-16.0bar
    Differential pressure adjustment range 1 0-3.0bar 1.0-3.0bar 1. 4-4.0bar 1.8-4.5bar
    Factory settings 2.0-4.0bar 3.8- 5.0bar 5.6-7.0bar 8.0-10.0bar
    Rated voltage/current 400VAC-3,16A/25A
    Contact method Normally closed
    Interface standard 1/4 or 1/2NPT, G1/4 or 1/2 internal thread
    DAegree of protection IP54
    Wiring Threaded connection
    3C rated voltage range 36V and below
    Electrical life 100,000 times
    Shell material Cast aluminum
    Contact material Silver

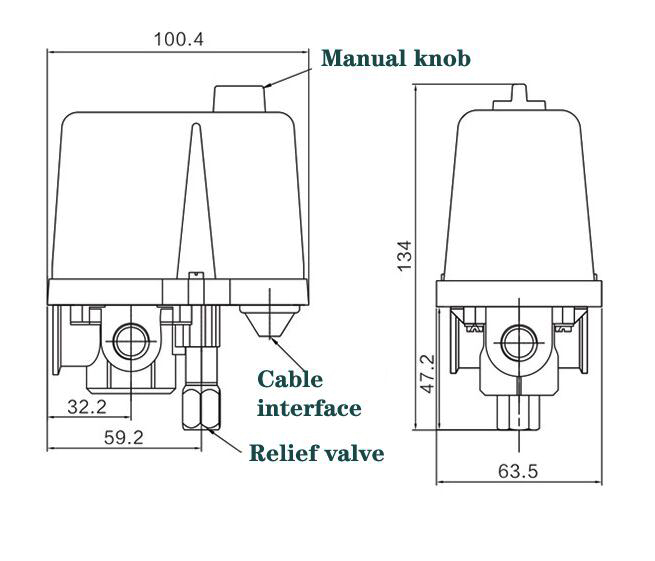

    Dimemsion (MM)

     Water pump pressure swirch size


    1. Water pump pressure switch with shell made of aluminum, flat and smooth, not easy to damage.
    2. Aluminum oxidation process, good airtightness and stability. Equipped with relief valve, which avoid overload.
    3. Well pump pressure switch has protection class IP54, long electrical life 100,000 times life. Contact material silver, interface standard 1/4 or 1/2NPT, G1/4 or 1/2 internal thread can be optional.
    4. Water pressure switch with four-way base allows for easier installation of exhaust valves and pressure gauges, more convenient and controllable performance. Easy to install and stable performance.
    5. Various styles water pressure switch are available, rated voltage/current 400VAC-3,16A/25A, contact method is normally closed.

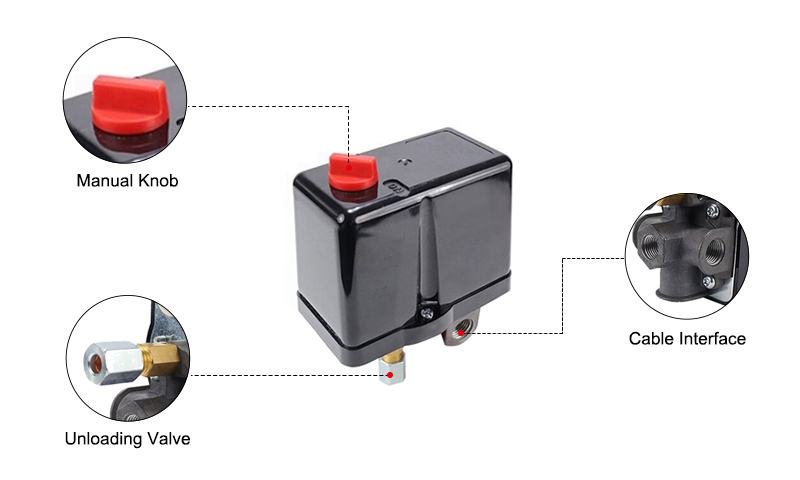

    1.0-16.0 bar Water Pump Pressure Switch Details

    Tips: How to connect water pump pressure switch?

    Generally, there are 4 terminals, and there are two connection methods:

    1. Use the plug connected to the wire, insert this end of the plug into socket A, and connect the end of the wire to the first and third terminals of the switch. Then connect the second and fourth terminals to socket B, and connect the power supply of the booster pump to socket B.
    2. Disconnect the power supply, connect one end of the power plug to No. 1 and No. 3 posts of the switch, and then connect No. 2 and No. 4 posts to the other end of the power cord.
    3. If the pressure switch has four wires, it is generally a pair of normally open points and a pair of normally closed points. It can only start the pump and keep pumping, indicating that the pressure switch has no action. Theoretically, it is because the action value is set too high and needs to be adjusted. Low. In addition, if the pipeline is not closed, the pressure cannot go up. To test its action, all valves must be closed.
