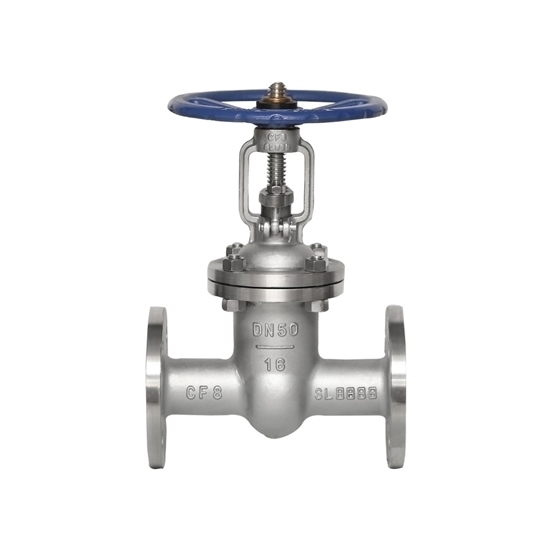

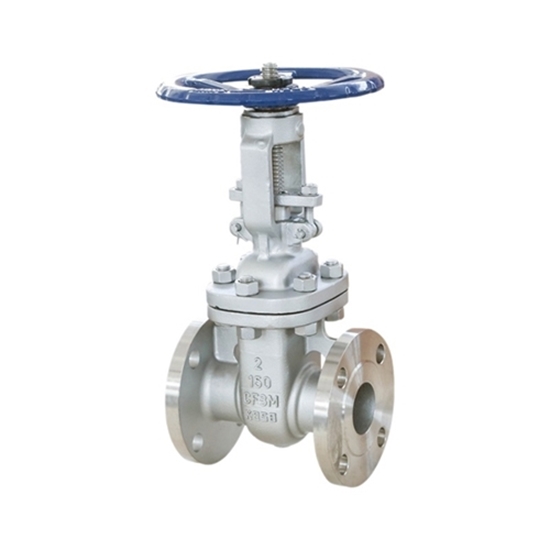

1-1/2 inch (DN40) ss flanged gate valve is a crucial component in industrial fluid control systems, specifically designed for applications in water lines, water pumps, and water tanks. Constructed from durable stainless steel, it ensures resilience against corrosion and wear, making it suitable for diverse environments. The 1.5 inch (40mm) high pressure gate valve features an OS&Y (Outside Screw and Yoke) design, allowing easy identification of its position and enhancing its reliability.
Specification
- Model: ATO-ANSI-DN40
- Connection Type: Flanged Type
- Flanged Port Size: 1-1/2 inch (DN40)
- Working Pressure (Optional): 150psi, 300psi
- Working Temperature: -425℃
- Valve Body Material: Stainless Steel
- Applicable Media: Water, Chemical, Petroleum, Gas, etc.
Detail & Dimension
Number |
Part Name |
Material |
1 |
Body |
304 Stainless Steel |
2 |
Disc |
304 Stainless Steel |
3 |
Steam |
304 Stainless Steel |
4 |
Gasket |
PTFE |
5 |
Bonnet |
CF8 |
6 |
Bolt |
304 Stainless Steel |
7 |
Nut |
304 Stainless Steel |
8 |
Packing |
PTFE |
9 |
Clevis Pin with Head |
304 Stainless Steel |
10 |
Split Pin |
304 Stainless Steel |
11 |
Gland |
CF8 |
12 |
Eye Bolts |
304 Stainless Steel |
13 |
Flat Pad |
304 Stainless Steel |
14 |
Nut |
304 Stainless Steel |
15 |
Steam Nut |
Bronze |
16 |
Bonnet Nut |
304 Stainless Steel |
17 |
Handwheel |
WCB |
18 |
Round Nut |
304 Stainless Steel |
Working Pressure |
Nominal |
Diameter |
L |
d |
D2 |
D1 |
D |
b |
f |
n-φd1 |
H |
W |
150psi |
DN40 |
1-1/2 inch |
165 |
40 |
73 |
98.4 |
125 |
12.7 |
2 |
4-16 |
266 |
160 |
300psi |
DN40 |
1-1/2 inch |
190 |
40 |
73 |
114.3 |
155 |
19.1 |
2 |
4-22 |
299 |
200 |
Tips: What are common issues and failures associated with flanged gate valves?
Common issues and failures associated with flanged gate valves include leakage, which can result from damaged or improperly seated seals, or wear and tear on the valve components. Corrosion is another prevalent problem, particularly in environments with aggressive fluids. Sticking or jamming of the valve gate due to debris or inadequate lubrication may hinder proper operation. Over-tightening of the bolts during installation can lead to distortion of the valve body, affecting its performance. Additionally, the valve stem and actuator may experience wear, potentially causing operational malfunctions. Regular maintenance, proper installation, and adherence to recommended operating conditions are crucial to mitigate these issues and ensure the reliable and efficient functioning of flanged gate valves.
