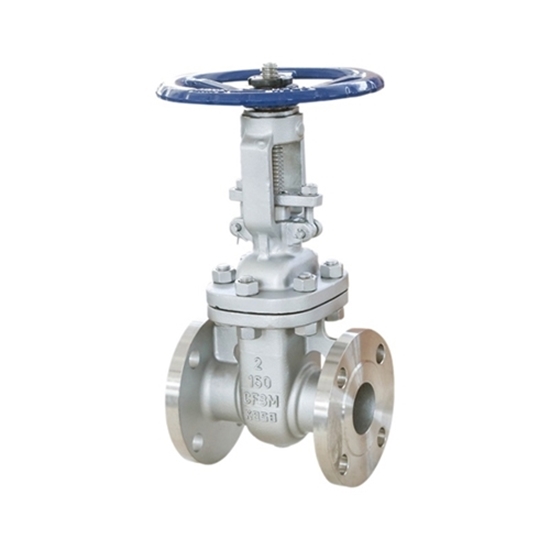

    4" Stainless Steel Flanged Gate Valve

    Stainless steel flanged gate valve for sale, 4 inch (DN100) flanged full port, optional high working pressure of 150psi and 300psi. Low price 40mm ss gate valve with full bore design facilitates unobstructed flow, minimizing pressure drops and promoting efficient fluid conveyance. It opens and closes securely, regulating the water flow effectively.
    SKU: ATO-FGV-DN100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    4 inch (DN100) ss flanged gate valve is a crucial component in industrial fluid control systems, specifically designed for applications in water lines, water pumps, and water tanks. Constructed from durable stainless steel, it ensures resilience against corrosion and wear, making it suitable for diverse environments. The 100mm high pressure gate valve features an OS&Y (Outside Screw and Yoke) design, allowing easy identification of its position and enhancing its reliability.


    • Model: ATO-ANSI-DN100
    • Connection Type: Flanged Type
    • Flanged Port Size: 4 inch (DN100)
    • Working Pressure (Optional): 150psi, 300psi
    • Working Temperature: -425℃
    • Valve Body Material: Stainless Steel
    • Applicable Media: Water, Chemical, Petroleum, Gas, etc.

    Detail & Dimension

    Stainless steel flanged gate valve detail and dimension

    Number Part Name Material
    1 Body 304 Stainless Steel
    2 Disc 304 Stainless Steel
    3 Steam 304 Stainless Steel
    4 Gasket PTFE
    5 Bonnet CF8
    6 Bolt 304 Stainless Steel
    7 Nut 304 Stainless Steel
    8 Packing PTFE
    9 Clevis Pin with Head 304 Stainless Steel
    10 Split Pin 304 Stainless Steel
    11 Gland CF8
    12 Eye Bolts 304 Stainless Steel
    13 Flat Pad 304 Stainless Steel
    14 Nut 304 Stainless Steel
    15 Steam Nut Bronze
    16 Bonnet Nut 304 Stainless Steel
    17 Handwheel WCB
    18 Round Nut 304 Stainless Steel
    Working Pressure Nominal Diameter L d D2 D1 D b f n-φd1 H W
    150psi DN100 4 inch 229 100 157 190.5 230 22.3 2 8-19 506 300
    300psi DN100 4 inch 305 100 157 200 255 30.2 2 8-22 515 300

    Tips: How does a flanged gate valve work?

    A flanged gate valve is a type of linear motion valve used to control the flow of fluids in pipelines. It consists of a flat gate with a seating surface that moves perpendicular to the direction of flow. The gate is attached to a stem, which is operated by a wheel-like handwheel or actuator. In the closed position, the gate seals against the valve seat, preventing fluid passage. To open the valve, the handwheel is turned, lifting the gate and allowing fluid to flow through the open space. Flanged connections on the valve body facilitate easy installation and removal. This design is ideal for applications where a straight-line flow with minimal pressure drop is required. Flanged gate valves are commonly used in industries such as oil and gas, water treatment, and manufacturing.
