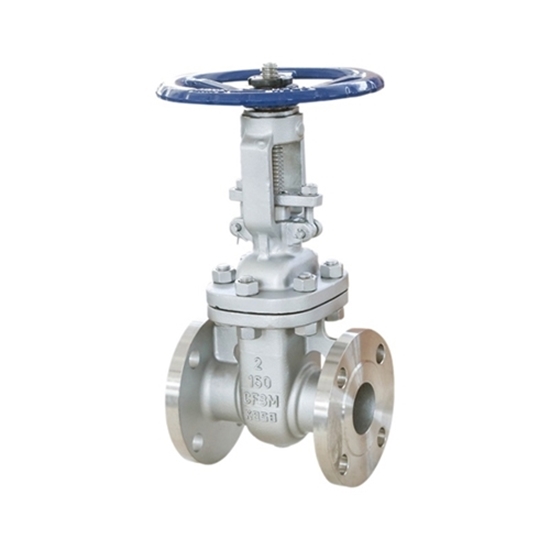

    6" Stainless Steel Flanged Gate Valve

    $1,539.59
    Cost-effective stainless flanged gate valve for sale online, 6 inch (DN150) flanged port, available high working pressure of 150psi and 300psi. This 150mm ss gate valve is a crucial component in fluid control systems, commonly used in water lines, water pumps, and water tanks.
    *
    SKU: ATO-FGV-DN150
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

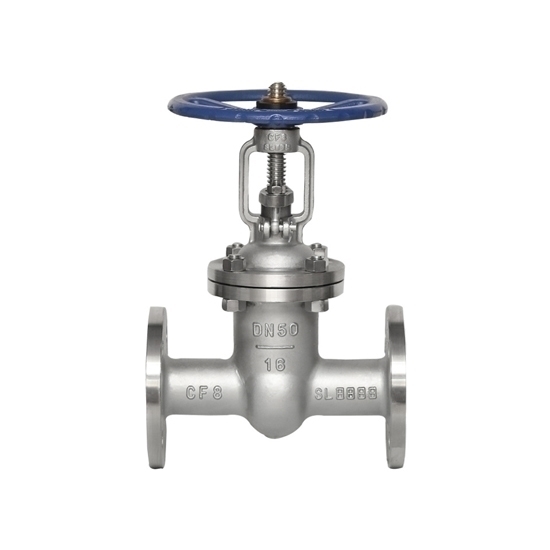

    6 inch ss flanged gate valve features an Outside Screw and Yoke (OS&Y) design, ensuring easy identification of its status – open or closed. Constructed from durable stainless steel, this high pressure DN150 gate valve exhibits corrosion resistance and longevity. Its full bore design allows unobstructed flow, minimizing pressure drop across the system.

    Specification

    • Model: ATO-ANSI-DN150
    • Connection Type: Flanged Type
    • Flanged Port Size: 6 inch (DN150)
    • Working Pressure (Optional): 150psi, 300psi
    • Working Temperature: -425℃
    • Valve Body Material: Stainless Steel
    • Applicable Media: Water, Chemical, Petroleum, Gas, etc.

    Detail & Dimension

    Stainless steel flanged gate valve detail and dimension

    Number Part Name Material
    1 Body 304 Stainless Steel
    2 Disc 304 Stainless Steel
    3 Steam 304 Stainless Steel
    4 Gasket PTFE
    5 Bonnet CF8
    6 Bolt 304 Stainless Steel
    7 Nut 304 Stainless Steel
    8 Packing PTFE
    9 Clevis Pin with Head 304 Stainless Steel
    10 Split Pin 304 Stainless Steel
    11 Gland CF8
    12 Eye Bolts 304 Stainless Steel
    13 Flat Pad 304 Stainless Steel
    14 Nut 304 Stainless Steel
    15 Steam Nut Bronze
    16 Bonnet Nut 304 Stainless Steel
    17 Handwheel WCB
    18 Round Nut 304 Stainless Steel
    Working Pressure Nominal Diameter L d D2 D1 D b f n-φd1 H W
    150psi DN150 6 inch 267 150 216 241.3 280 23.9 2 8-22 686 350
    300psi DN150 6 inch 403 150 216 270 320 35 2 12-22 695 350

    Tips: What is a flanged gate valve?

    A flanged gate valve is a type of industrial valve designed to control the flow of fluids in a piping system. It consists of a gate (a flat or wedge-shaped barrier) that can be raised or lowered to either block or allow the passage of fluid through the valve. The term "flanged" refers to the valve's connection points, which have flanges that can be bolted to corresponding flanges on the pipeline. This flange design provides a secure and leak-tight connection.
    Flanged gate valves are commonly used in applications where on/off control of fluid flow is required, such as in water treatment plants, oil and gas pipelines, and various industrial processes. The flanged connections facilitate easy installation and maintenance, making them a popular choice in large-scale and critical systems where reliability and durability are essential.
