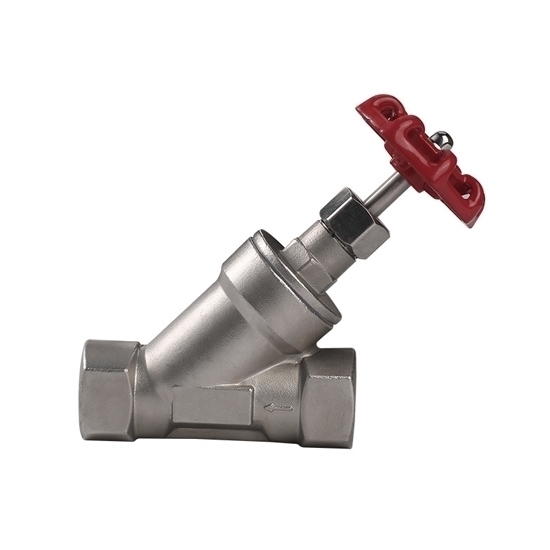

    1-1/4" Manual Angle Seat Valve

    Favorable price manual angle seat valve with 1-1/4 inch (DN32) thread port size, is a fluid control valve designed for optimal performance in various industrial applications. This angle seat piston valve features a 304 stainless steel body and a handwheel for precise adjustment of flow rates, single acting, and providing flexibility in fluid management.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    ATO manual angle seat valves are indispensable components for achieving precise and dependable fluid control in industrial processes, reflecting a commitment to quality, durability, and operational excellence.


    • Model: ATO-MANGLE-DN32
    • Thread Port Size: 1-1/4 inch (DN32)
    • Working Medium: Air, Water, Oil, Gas, Steam
    • Body Material: 304 Stainless Steel
    • Driving Mode: Manual
    • Mode of action: Single Acting
    • Nominal Pressure: 25Mpa
    • Sealing Method: Soft Seal
    • Sealing Material: PTFE
    • Flow Direction: One Way

    Manual Angle Seat Valve Dimension

    Manual angle seat valve dimension

    • G: 1-1/4 inch (DN32)
    • L: 120mm

    Tips: How to use a manual angle seat valve?

    1. Inspect the Angle Seat Valve: Examine the valve for any visible damage or debris. Ensure it is in the closed position if not already.
    2. Prepare the Piping: Make sure the piping system connected to the valve is properly set up and ready for operation.
    3. Turn the Handle: Rotate the valve's handwheel or lever in the desired direction to open or close the valve. Typically, turning it counterclockwise opens the valve, while turning it clockwise closes it.
    4. Monitor Flow: While turning the handle, observe the flow of the fluid through the valve. The valve's position can be adjusted to control the flow rate.
    5. Close the Valve: To stop the flow, turn the handle in the opposite direction until the valve is fully closed.
    6. Regular Maintenance: Periodically inspect and lubricate the valve to ensure smooth operation and prevent any issues.
