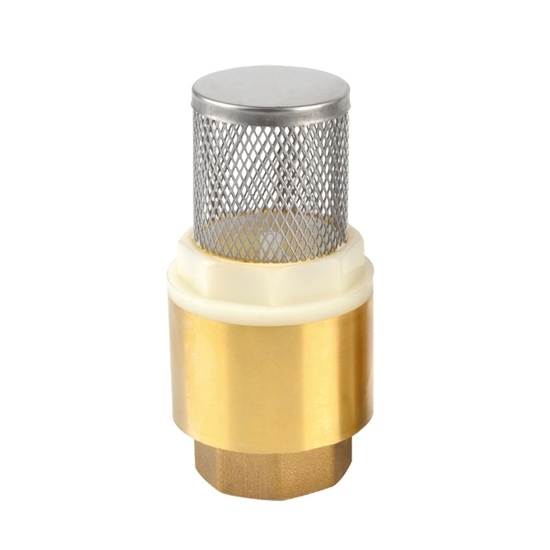

    1/2 inch Brass Foot Valve for Water Pump

    5 out of 5 based on 1 reviews | Write a review
    $40.14
    1/2" (DN15) brass foot valve for sale online. It is installed in the bottom of vertical pipes or wells to control the flow of water, oil or other fluids. Low price foot valve is usually used in agricultural irrigation, industrial and commercial water supply and water treatment system.
    SKU: ATO-BFV-12
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Low price 1/2" brass foot valve, durable, strong temperature resistance and easy to install, DN15, PN1.6 Mpa, suitable for applications where water pumps are used to draw water or other fluids from wells or other sources.

    Specifications

    • Model: ATO-SS6060
    • Size: 1/2 inch (DN15, 15mm)
    • Main Material: Brass Valve Body/Stainless Mesh Filter/Plastic Valve Core
    • Drive Mode: Hydraulic Control
    • Connection Form: Internal Thread
    • Thread Standard: ISO228
    • Shape: Lifting
    • Operating Temperature: -20°C≤T≤100°C
    • Nominal Pressure: 1.6Mpa
    • Working Medium: Water, Oil

    Note: Although the foot valve is equipped with an anti-clogging filter, it is generally suitable for clean media, not for media with high viscosity and large particle sizes.

    Dimension (Unit: mm)

    L:65mm D:30mm Weight: 86g

    Brass foot valve dimension

    Applications

    The foot valve has the advantages of small friction resistance, long service life, energy saving, easy installation, use and maintenance, etc., widely used in water pump supporting facilities in petrochemical, chemical, textile, printing and dyeing, metallurgy, mining, drainage and irrigation and other industries.

    Foot valve applications

    Tips: Can brass foot valves be used for water pumps?

    Yes, brass foot valves can be used for water pumps, depending on the specific application and requirements. A foot valve is a type of check valve that is typically installed at the bottom of a suction line in a water pump system to prevent the water from draining back out of the system when the pump is turned off. Brass is a commonly used material for foot valves in water systems because it is durable, corrosion-resistant, and can withstand high pressure and temperature. However, the compatibility of the brass foot valve with water pump components and the specific requirements of the application should be considered before selecting a valve. It is also important to ensure that the valve is designed for the intended pressure, flow rate, and temperature range of the water system. It's always best to consult with a qualified professional or refer to the manufacturer's specifications to ensure the proper valve selection for a specific application.
