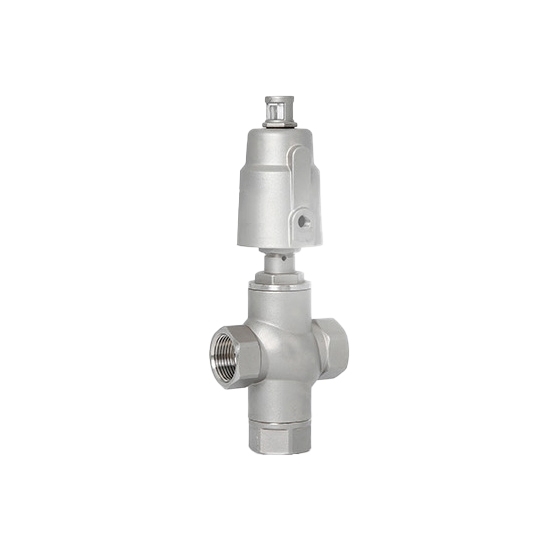

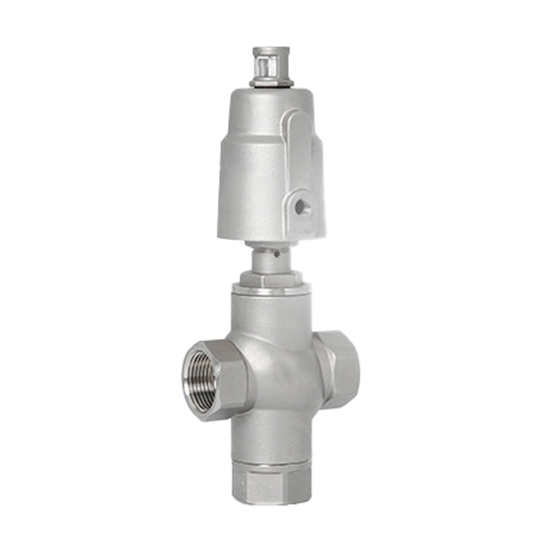

    1/2" Pneumatic Angle Seat Valve, 3 Way

    1/2"Pneumatic angle seat valve, 3 way with a maximum capacity of 1.6MPa. With precise control capabilities, the valve operates within a control pressure range of 0.3-0.8MPa, utilizing neutral gas or air as the control medium. Crafted with a durable CF8M body and featuring an actuator made from high-quality materials.
    SKU: ATO-S3-DN15
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The seal material, PTFE, guarantees a secure and leak-free operation, while the 1/2" Pneumatic angle seat valve remains versatile in managing temperatures from -10℃ to +180℃ for the medium and -10℃ to +80℃ for ambient conditions.


    Model ATO-S3-DN15
    Work pressure Max1.6MPa
    Control pressure 0.3-0.8MPa
    Control medium Neutral gas or air
    Body material CF8M
    Actuator material CF8
    Material 304 stainless steel
    Seal material PTFE
    Medium temperature -10℃~+180 ℃
    Ambient temperature -10℃~+80℃
    Control type Normally closed, Double acting with spring, Doubleacting with compressed air.
    Connection Thread
    Applicable medium Water, steam, oil, neutral gas or liquid, organic solvent, acid base solution, etc
    Weight 3kg


    1-2 pneumatic angle seat valve 3 way function

    Pressure Date

    Size Actuator lnterface lnner hole (mm) Flow rate AB KV (m2/h) AC Differential pressure range P (MPa) AB / AC Differential pressure range ∆P (MPa) C⟶A Control pressure (MPa)
    DN15 40 1/2" 14 4.1 4.9 0-1.6 1.2 0.4-0.6

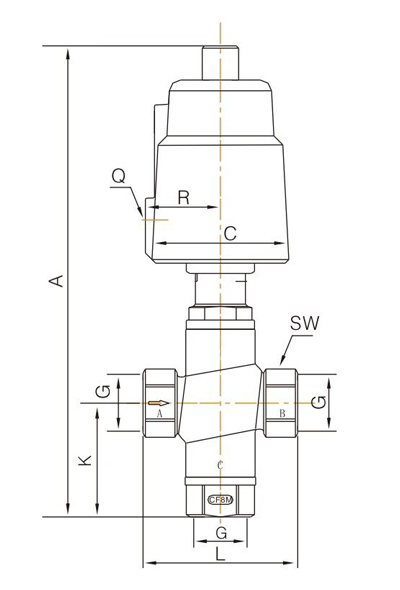

    Dimension (Unit:mm)

    1-2 pneumatic angle seat valve 3 way

    Size Actuator Q C R G A K L SW Weight(kg)
    DN15 40 G1/8 50.5 27 1/2" 195 50 68 27 3

    Tips: What are the key features of pneumatic angle seat valves?

    • Angled body design for a straight flow path.
    • Pneumatic actuation for fast and precise control.
    • Suitable for on/off and modulating control applications.
    • Versatile installation options.
    • Commonly used in industries like pharmaceuticals, food and beverage, water treatment, and chemical processing.
