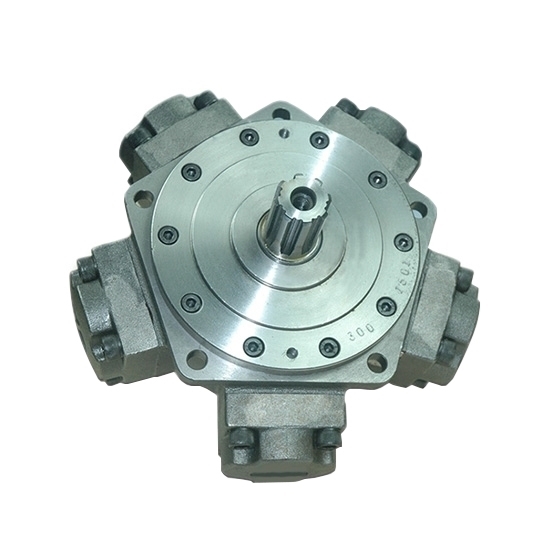

    15 hp 100-280cc Radial Piston Hydraulic Motor, 25MPa

    $823.08
    Buy radial piston hydraulic motor at good price. Optional working power 15/16/17 hp (11/12/13kW), rated pressure 16~25MPa, torque 419~653N.m, theoric specific torque 17~41N.m/MPa, maximum speed 500~1250 rpm, displacement 100~280cc (mL/r). High torque radial piston engine for sale, professional manufacturer.
    SKU: ATO-RPHM-1525
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    High torque radial piston hydraulic motor works at 15/16/17 hp (11/12/13kW) rated power, rated pressure 16~25MPa (2300~3600 psi), theoric specific torque 17~41N.m/MPa, speed range 15~1250 rpm. Hydraulic radial piston engine has wide applications of injection molding machines, ship deck machinery, construction machinery, lifting vehicles, heavy metallurgical machinery, petroleum mine machinery, light equipment, board, drilling machines and other hydraulic transmission systems and equipment, etc.

    Specification

    Model ATO-LD2
    Displacement (cc/r) 100 150 175 200 250 280
    Rated Power (hp) 10 14 16 17 17 16
    (kW) 8 11 12 13 13 12
    Rated Pressure (MPa) 25 25 20 20 16 16
    (psi) 3626 3626 2901 2901 2321 2321
    Peak Pressure (MPa) 32 32 25 25 20 20
    Rated Torque (N.m) 419 588 532 611 556 653
    Theoric Specific Torque (N.m/MPa) 17 24 27 31 35 41
    Speed Range (rpm) 15~1250 15~1000 15~1000 8~800 8~630 8~500
    Weight (kg) 27 27 27 27 27 27

    Features

    • The radial piston hydraulic motor is a large torque motor with crankshaft and rod.
    • The shell of radial piston hydraulic motor is extruded and nitrided, which is resistant to wear, fatigue and high temperature.
    • The plunger body is nitrided, added with specially developed piston rings, and good wear resistance.
    • Oil seal of the radial piston hydraulic motor uses skeleton oil seals, high temperature resistance, high pressure, and it is not easy to leakage.

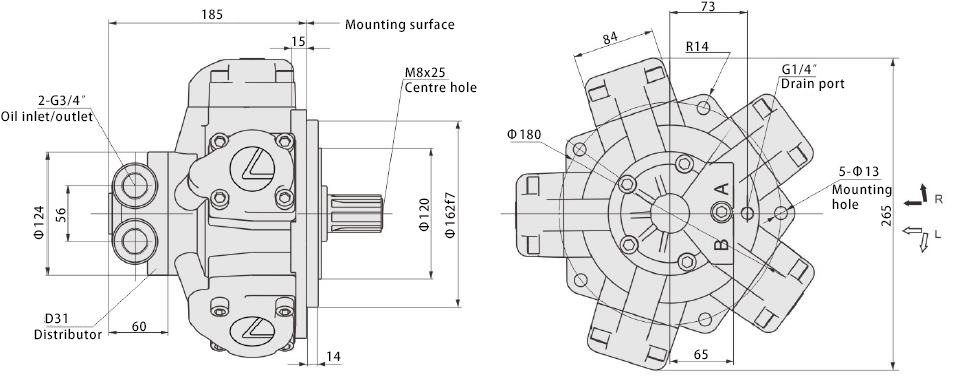

    15 hp Radial Piston Hydraulic Motor Dimensions Diagram (Unit: mm)

    Dimensions Diagram of 15 HP 100-280cc Radial Piston Hydraulic Motor, 25MPa

    15 hp Radial Piston Hydraulic Motor Mounting Diagram

    Installation Diagram of Radial Piston Hydraulic Motor

    Tips: How to use radial piston hydraulic pump safely?

    1. Operate the radial piston hydraulic pump in strict accordance with the manual provided by manufacturer. All fastening torques of radial piston hydraulic pump have been adjusted to the limit at the factory, and once the user tighten it again, it is likely to trigger security issues.
    2. Use the manufacturer's instructions to add radial piston hydraulic pump oil. In detail in the instructions of radial piston hydraulic pump, there is the specified amount of oil needed in the product use. When the user performs the addition of the oil, the amount of oil should be maintained in the appropriate range, otherwise security issues will be triggered.
    3. Safety measures during operation of radial piston hydraulic pump. When radial piston hydraulic pump enters the working state, the shell and internal coils of the hydraulic motor are very high-temperature after a period of operation. If the user close to the motor, it is easy to accidentally scald. If you need to close to radial piston hydraulic pump, you should wear protective clothing and do your necessary security measures.
