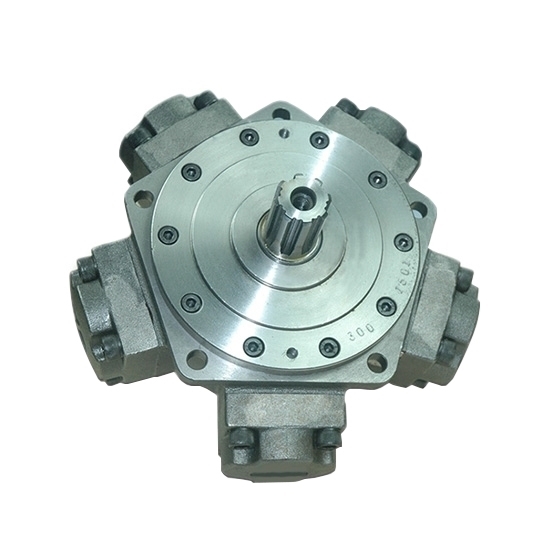

    40 hp 400-750cc Radial Piston Hydraulic Motor, 25MPa

    $1,363.69
    High torque low speed radial piston hydraulic motor for sale. Rated power 40~48 hp (30~36kW), working pressure 16/20/25MPa, torque 1451~1785N.m, theoric specific torque 59~112N.m/MPa, maximum speed 320~630 rpm, displacement 400~750cc (mL/r). Radial piston engine produced by high-quality manufacturer.
    SKU: ATO-RPHM-4025
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Radial piston hydraulic motor has high torque of 1451~1785 N.m and low speed of 320~630 rpm, works at power of 40~48 hp (30~36kW), displacement 400~750cc (mL/r), rated pressure 2300~3600 psi. If you need high output torque, please select a low speed.

    Specification

    Model ATO-LD6
    Displacement (cc/r) 400 450 500 600 700 750
    Rated Power (hp) 36 40 41 47 48 41
    (kW) 27 30 31 35 36 31
    Rated Pressure (MPa) 25 25 20 20 16 16
    (psi) 3626 3626 2901 2901 2321 2321
    Peak Pressure (MPa) 32 32 25 25 20 20
    Rated Torque (N.m) 1469 1672 1451 1756 1616 1785
    Theoric Specific Torque (N.m/MPa) 59 67 73 88 101 112
    Speed Range (rpm) 5~630 5~630 5~500 4~500 4~400 4~320
    Weight (kg) 57.5 57.5 57.5 57.5 57.5 57.5

    Features

    • The radial piston hydraulic motor is a large torque motor with crankshaft and rod.
    • The shell of radial piston hydraulic motor is extruded and nitrided, which is resistant to wear, fatigue and high temperature.
    • The plunger body is nitrided, added with specially developed piston rings, and good wear resistance.
    • Oil seal of the radial piston hydraulic motor uses skeleton oil seals, high temperature resistance, high pressure, and it is not easy to leakage.
    • Applications of the radial piston hydraulic motor include injection molding machines, ship deck machinery, construction machinery, lifting vehicles, heavy metallurgical machinery, petroleum mine machinery, light equipment, board, drilling machines and other hydraulic transmission systems and equipment, etc.

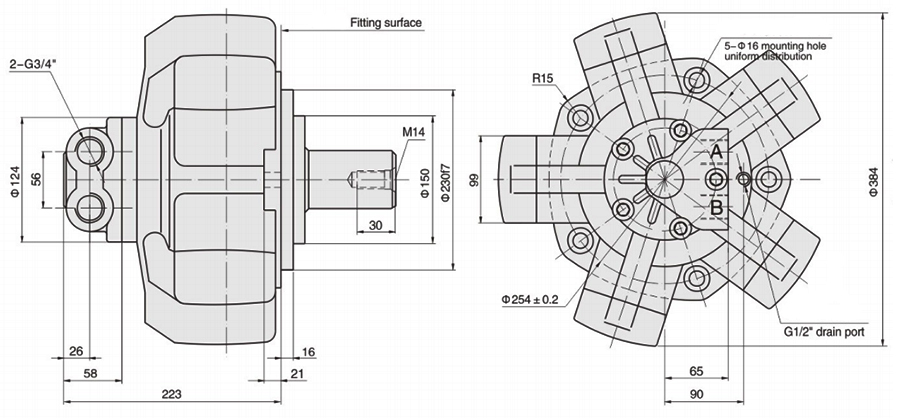

    40 hp Radial Piston Hydraulic Motor Dimensions Diagram (Unit: mm)

    Dimensions diagram of 40 HP 400-750cc Radial Piston Hydraulic Motor, 25MPa

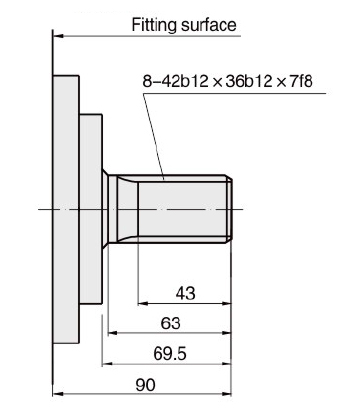

    40 hp Radial Piston Hydraulic Motor Mounting Diagram

    Installation Diagram of Radial Piston Hydraulic Motor
