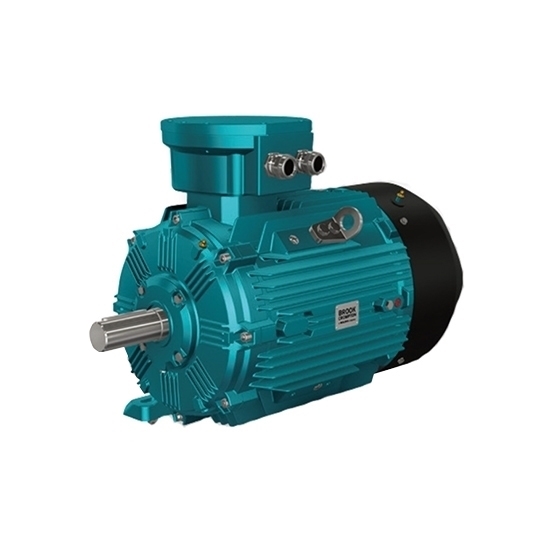

1hp (750W) Explosion Proof Motor, 380V, 2P/ 3P/ 4P

Write a review

$702.70

1hp explosion-proof motor online for sale. Flameproof motor with frequency 50Hz, 2P/ 3P/ 4P can be chosen, B3/ B35/ B5 three mounting types for selection. Three phase asynchronous motor is used in coal mines, oil and gas, petrochemical and chemical industries.

Number of Poles *
Installing Form *

SKU: ATO-WEX3-80M1

Qty:

30-day Returns

Free Shipping

Delivery date: 10-12 days

Overview

750 watt explosion proof motor at affordable price, with 3000r/min/ 1500r/min/ 1000r/min three synchronous speed are optional. Flameproof three-phase asynchronous motor has the advantages of beautiful appearance, high efficiency, energy saving, low noise, low vibration, safety, reliability and convenient maintenance.

Specification

Model	WEX3-80M1-2
Numbers of poles	2P/ 4P/ 6P
Synchronous speed	3000r/min/ 1500r/min/ 1000r/min
Mounting types	B3/ B5/ B35
Rated power	1hp (750W)
Rated voltage	380V (380V-660V can be customized)
Frequency	50Hz
Duty	S1
Ambient temperature	-20℃~40℃
Altitude	≤1000m
Humidity	≤90%
Terminal box position	Top
Type of cable entry	Cable grand
Enclosure	IP55
Inverter operation	Inverter use ready up to 500V acc
Insulation	Class F
Cooling type	IC411
Shaft key	Type A
Lubrication	Sealed
Connectiom	"Y" connection
Fan material	Engineered plastic
Rotation direction	Clockwise rotation at drive end
Winding temperature measurement	Thermistors (PTC)
Anti-corrosion grade	C3
Certificates	IEC, EX, ATEX
Explosion-proof mark	Ex d I Mb, Ex d ⅡB T4 Gb, Ex d ⅡC T4 Gb
Warranty	12 months

Dimensions (mm)

Mounting type	Frame size	Mounting dimensions (mm)													Outline dimensions (mm)
		A	A/2	B	C	H	n	K	M	N	P	R	S	T	AA		EV		LA	AB		BB		HA		AC	HD		L
		A	A/2	B	C	H	n	K	M	N	P	R	S	T	AA		EV		LA	AB		BB		HA		AC	Ex db eb	Ex db	L
B3	80M	125	62.5	100	50	80	4	10	-	-	-	-	-	-	32	27.5	15	15	-	157	160	160	130	10	12	162	255	260	360
B35		125	62.5	100	50	80	4	10	165	130	200	0	12	3.5	32	27.5	15	15	12	157	160	160	130	10	12	162	255	260	360
B5		-	-	-	-	80	-	-	165	130	200	0	12	3.5	-	-	-	-	12	-	-	-	-	-	-	162	275	280	360

Dimension of explosion proof of B3

Dimension of explosion proof of B35

Dimension of explosion proof of B5

Frame size	Shaft (mm)
Frame size	D	E	F	GA	DB
80M	19	40	6	21.5	M6*20

Dimension of explosion proof motor of draft

Details

750W Explosion Pproof Motor Details

Tips: What is Explosion Proof Motor?

Explosion-proof motor is a type of motor with explosion-proof performance. It is a kind of motor that can be used in flammable and explosive places, and it does not produce electric sparks during operation. The explosion-proof motor is actually an explosion-proof motor. It has a structure different from that used in ordinary environments. It can prevent the combustible gas and dust outside the motor from entering the motor to the greatest extent, or even if it enters, it will not ignite the combustible gas and dust in the surrounding environment from the flame out of the casing when short-circuited and caught in the interior. As the main power equipment, flameproof motors are usually used to drive pumps, fans, compressors and other transmission machinery.
