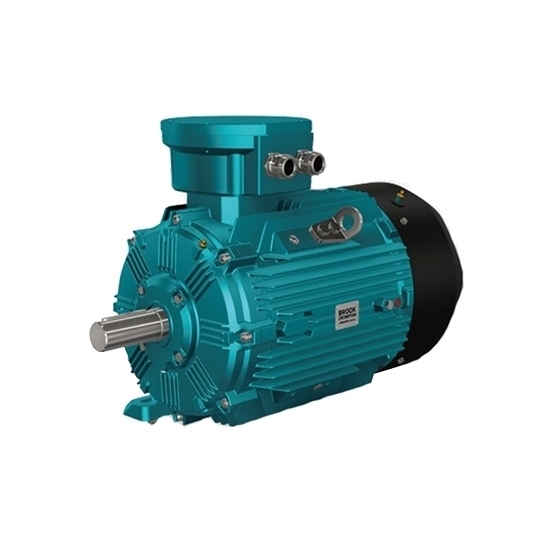

2hp (1.5kW) Explosion Proof Motor, 380V, 2P/ 3P/ 4P

Write a review

$846.51

2hp explosion proof motor for sale at affordable price, with rated voltage 380V, 3000r/min/ 1500r/min/ 1000r/min synchronous speed, two pole/ three pole/ four pole can be chosen. Flameproof motor has the advantages of high efficiency and energy saving, low noise, low vibration, safety and convenient maintenance.

Number of Poles *
Installing Form *

SKU: ATO-WEX3-90S

Qty:

30-day Returns

Free Shipping

Delivery date: 10-12 days

Overview

Cost-effective three phase asynchronous motor with B3/ B5/ B35 three mounting types, 50Hz frequency. This types of induction motor is widely used in sectors such as textiles, metallurgy, city gas, transportation, grain and oil processing, papermaking, and medicine.

Specification

Model	WEX3-90S
Numbers of poles	2P/ 4P/ 6P
Synchronous speed	3000r/min/ 1500r/min/ 1000r/min
Mounting types	B3/ B5/ B35
Rated power	2hp (1.5kW)
Rated voltage	380V (380V-660V can be customized)
Frequency	50Hz
Duty	S1
Ambient temperature	-20℃~40℃
Altitude	≤1000m
Humidity	≤90%
Terminal box position	Top
Type of cable entry	Cable grand
Enclosure	IP55
Inverter operation	Inverter use ready up to 500V acc
Insulation	Class F
Cooling type	IC411
Shaft key	Type A
Lubrication	Sealed
Connectiom	"Y" connection
Fan material	Engineered plastic
Rotation direction	Clockwise rotation at drive end
Winding temperature measurement	Thermistors (PTC)
Anti-corrosion grade	C3
Certificates	IEC, EX, ATEX
Explosion-proof mark	Ex d I Mb, Ex d ⅡB T4 Gb, Ex d ⅡC T4 Gb
Warranty	12 months

Dimensions (mm)

Mounting type	Frame size	Mounting dimensions (mm)													Outline dimensions (mm)
		A	A/2	B	C	H	n	K	M	N	P	R	S	T	AA		EV		LA	AB		BB		HA		AC	HD		L
		A	A/2	B	C	H	n	K	M	N	P	R	S	T	AA		EV		LA	AB		BB		HA		AC	Ex db eb	Ex db	L
B3	90S	140	70	100	56	90	4	10	-	-	-	-	-	-	37	34	12	15	-	172	180	200	155	12	12	175	275	280	396
B35		140	70	100	50	90	4	10	165	130	200	0	12	3.5	37	34	12	15	10	172	180	200	155	12	12	175	275	280	396
B5		-	-	-	-	90	-	-	165	130	200	0	12	3.5	-	-	-	-	10	-	-	-	-	-	-	175	285	290	426

Dimension of explosion proof of B3

Dimension of explosion proof of B35

Dimension of explosion proof of B5

Frame size	Shaft (mm)
Frame size	D	E	F	GA	DB
90S	24	50	8	27	M8*22

Dimension of explosion proof motor of draft

Details

1500W Explosion Proof Motor Details

Tips: Types of Explosion Proof Motor.

Flameproof motor:

It uses a flameproof enclosure to separate the electrical parts that may produce sparks, arcs and dangerous temperatures from the surrounding explosive gas mixture. However, this kind of shell is not sealed, and the surrounding explosive gas mixture can enter the inside of the motor through the gaps between the joint surfaces of each part of the shell. An explosion may occur when it comes into contact with ignition sources such as sparks, arcs, and dangerous high temperatures in the enclosure. At this time, the flameproof enclosure of the motor will not be damaged or deformed, but also when the explosion flame or hot gas is transmitted through the joint surface gap, Nor can it ignite the surrounding explosive gas mixture. The explosion-proof marks are ExdI, ExdIIAT4, ExdIIBT4, which are suitable for non-excavation working faces in coal mines or workplaces where explosive gas mixtures are contained in factories. It has the advantages of high efficiency, energy saving, large temperature rise margin, long life, good performance, low noise, low vibration, high protection level, advanced explosion-proof structure, safety and reliability, and convenient use and maintenance. A new generation of energy-saving power equipment suitable for coal, petroleum, chemical and other industries.
