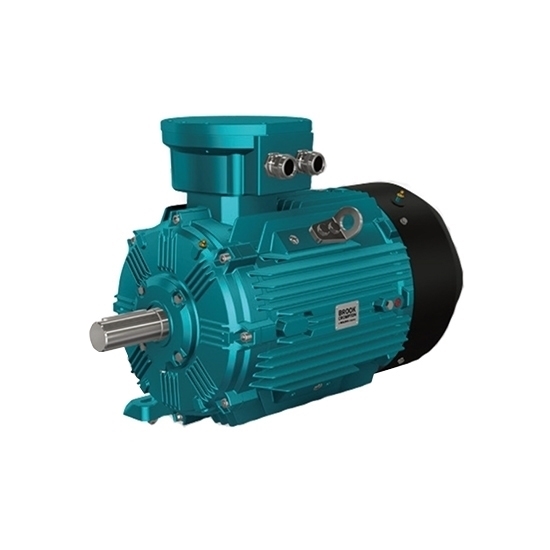

    7.5hp (5.5kW) Explosion Proof Motor, 380V, 2P/ 3P/ 4P

    $1,654.45
    5.5kW explosion proof motor with cheap price, which with 380V rated voltage (380V-660V can be customized), rated frequency 50Hz, 2P/ 3P/ 4P can be chosen. It has the advantages of beautiful appearance, high efficiency and energy saving, low noise, low vibration, safety and reliability, convenient maintenance.
    SKU: ATO-WEX3-132S1
    *
    *
    Free Shipping Worldwide
    Delivery date: 10-12 days

    Good price explosion proof motor with B3/ B5/ B35 three mounting types for selection, 3000r/min/ 1500r/min/ 1000r/min synchronous speed, IP55 enclosure and class F insulation.

    Specification

    Model WEX3-132S1-2
    Numbers of poles 2P/ 4P/ 6P
    Synchronous speed 3000r/min/ 1500r/min/ 1000r/min
    Mounting types B3/ B5/ B35
    Rated power 7.5hp (5.5kW)
    Rated voltage 380V (380V-660V can be customized)
    Frequency 50Hz
    Duty S1
    Ambient temperature -20~40℃
    Altitude 1000m
    Humidity ≤90%
    Terminal box position Top
    Type of cable entry Cable grand
    Enclosure IP55
    Inverter operation Inverter use ready up to 500V acc
    Insulation Class F
    Cooling type IC411
    Shaft key Type A
    Lubrication Sealed
    Connectiom "Δ" connection
    Fan material Engineered plastic
    Rotation direction Clockwise rotation at drive end
    Winding temperature measurement Thermistors (PTC)
    Anti-corrosion grade C3
    Certificates IEC, EX, ATEX
    Explosion-proof mark Ex d I Mb, Ex d ⅡB T4 Gb, Ex d ⅡC T4 Gb
    Warranty 12 months

    Dimensions (mm)

    Mounting type Frame size Mounting dimensions(mm)             Outline dimensions (mm)
    A A/2 B C H n K M N P R S T AA EV LA AB BB HA AC HD L
    Ex db eb Ex db
    B3 132S 216 108 140 89 132 4 12 - - - - - - 56 50 22 23.5   262 266 250 187 18 20 249 392 395 515
    B35 216 108 140 89 132 4 12 265 230 300 0 14.5 4 56 50 22 23.5 16 262 266 250 187 18 20 249 392 395 515
    B5 - - - - 132 - - 265 230 300 0 14.5 4 - - - - 16 - - - - - - 249 410 413 515

    Dimension of explosion proof of B3

    Dimension of explosion proof of B35

    Dimension of explosion proof of B5

    Frame size Shaft (mm)
    D E F GA DB
    132S 38 80 10 41 M12*28

    Dimension of explosion proof motor of draft

    Tips: How to Maintain Explosion Proof Motor?

    1. When the motor is disassembled, all bolts, brush holders, pad irons, etc. must be marked. The explosion-proof motor must protect the explosion-proof surface.

    2. When disassembling (pumping) the motor rotor, the steel wire rope used should not touch the rotor, bearing, fan, oil ring and coil; the rotor should be placed on the hard gasket; special care should be taken not to make the rotor touch the stator; the steel wire rope should be used to tie the rotor The part must be lined with wooden mats.

    3. When inspecting and repairing the stator, use compressed air to blow the vent and coil ends clean. In order to avoid damage to the insulation, metal tools must not be used when removing dirt on the stator coil, and chips made of wood or insulating plates must be used.
