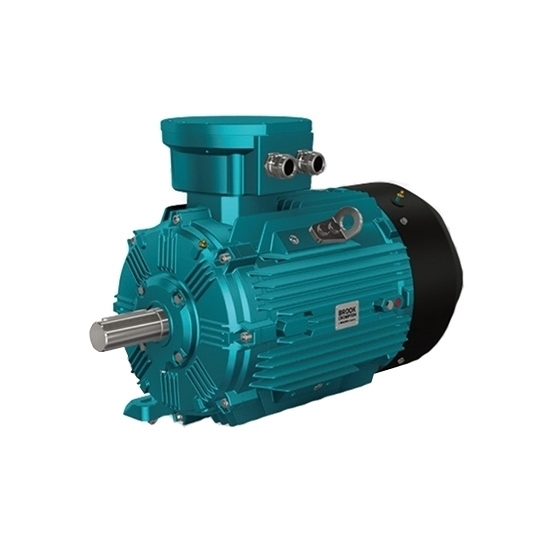

    15hp (11kW) Explosion Proof Motor, 380V, 2P/ 3P/ 4P

    $2,962.06
    Cost-effective explosion proof motorwith rate power 11000 watt, rated frequency 50Hz, 2P/ 3P/ 4P for selection, IC411 cooling type. It is widely used in coal mines, oil and gas, petrochemical and chemical industries.
    SKU: ATO-WEX3-160M1
    *
    *
    Free Shipping Worldwide
    Delivery date: 10-12 days

    Good price explosion proof motor with rated viltage 380V, -20~40℃ ambient temperature, "Δ" connection. It has the advantages of beautiful appearance, high efficiency and energy saving, low noise, low vibration, safety and reliability, convenient maintenance.

    Specification

    Model WEX3-160M1-2
    Numbers of poles 2P/ 4P/ 6P
    Synchronous speed 3000r/min/ 1500r/min/ 1000r/min
    Mounting types B3/ B5/ B35
    Rated power 15hp (11kW)
    Rated voltage 380V (380V-660V can be customized)
    Frequency 50Hz
    Duty S1
    Ambient temperature -20~40℃
    Altitude 1000m
    Humidity ≤90%
    Terminal box position Top
    Type of cable entry Cable grand
    Enclosure IP55
    Inverter operation Inverter use ready up to 500V acc
    Insulation Class F
    Cooling type IC411
    Shaft key Type A
    Lubrication Sealed
    Connectiom "Δ" connection
    Fan material Engineered plastic
    Rotation direction Clockwise rotation at drive end
    Winding temperature measurement Thermistors (PTC)
    Anti-corrosion grade C3
    Certificates IEC, EX, ATEX
    Explosion-proof mark Ex d I Mb, Ex d ⅡB T4 Gb, Ex d ⅡC T4 Gb
    Warranty 12 months

    Dimensions (mm)

    Mounting type Frame size Mounting dimensions(mm)             Outline dimensions (mm)
    A A/2 B C H n K M N P R S T AA EV LA AB BB HA AC HD L
    Ex db eb Ex db
    B3 160M 254 127 210 108 160 4 14.5 - - - - - - 65 60 22 23   341 310 320 256 20 25 315 450 455 668
    B35 254 127 210 108 160 4 14.5 300 250 350 0 18.5 5 65 60 22 23 16 341 310 320 256 20 25 315 450 455 668
    B5 - - - - 160 - - 300 250 350 0 18.5 5 - - - - 16 - - - - - - 315 465 470 670

    Dimension of explosion proof of B3

    Dimension of explosion proof of B35

    Dimension of explosion proof of B5

    Frame size Shaft (mm)
    D E F GA DB
    160M 42 110 12 45 M12*28

    Dimension of explosion proof motor of draft

    Tips: How to maintain Explosion Proof Motor?

    1. The brush and slip ring surface should match. There should be a gap of 0.1-0.2mm between the brush and the brush holder, and the distance between the lower edge of each brush holder and the slip ring should be 2-3mm. The pressure of the brush on the slip ring should be adjusted to the lowest pressure where no spark occurs, generally 0.02-0.03MPa, and the pressure of each brush should not differ by 10%. The brush holder and the cross bar should be fastened, and there should be no dirt or damage between the insulating liner, insulating pad and slip ring. The insulation resistance of the brush holder should be above 100MΩ.

    2. Partially or completely replace the coil or the damp motor should be dried. For the motor that has not been used for a long time, use a shaker to measure the insulation resistance, and then judge whether the motor needs to be dried based on the measurement result.

    3. After the motor is disassembled, remove the bearing and wash it with kerosene or gasoline. When the measured bearing clearance exceeds the allowable value, the rolling bearing should be replaced.

    4. When overhauling the cooling system, the temperature measurement, fan blades and other auxiliary devices must be checked at the same time.
