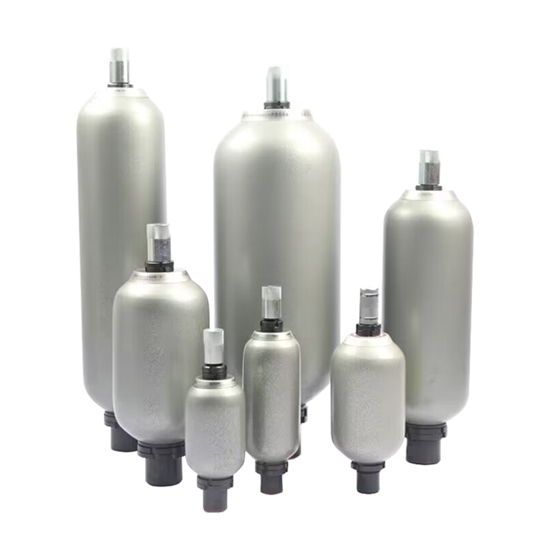

    2-1/2 Gallon Hydraulic Bladder Accumulator

    $814.11
    The provided 2-1/2 gallon hydraulic accumulator is a bladder type accumulator, working medium can be hydraulic oil and nitrogen. Hydac accumulator with a 10L capacity is commonly used in hydraulic systems where constant pressure needs to be maintained.
    *
    SKU: ATO-HBA-10L
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy quality 2-1/2 gallon hydac accumulator online, 10L capacity, lightweight and compact, easy to install and maintain. The hydraulic bladder accumulator can stabilize the oil pressure in the compressor oil system and prevent large oil pressure fluctuations during operation.

    Specifications

    • Model: ATO-NXQ-A-10/31.5-L-Y
    • Nominal Capacity: 10L (About 2.5 gallon)
    • Nominal Pressure: 31.5Mpa
    • Connection Method: Thread
    • Material: 35CrMo Steel
    • Bladder Material: Nitrile Rubber
    • Working Medium: Hydraulic Oil, Nitrogen

    Precautions

    • Welding and machining are not allowed on the hydraulic accumulator shell.
    • The hydraulic accumulator capsule is only allowed to be filled with nitrogen, and oxygen and other flammable and corrosive gases are not allowed.
    • Hydraulic accumulators should be installed in hydraulic systems with overflow valves or other safety valves.
    • It is strictly forbidden to use overpressure.

    Dimension

    Hydraulic bladder accumulator dimension

    Volume DM (Connection Size H φ Weight
    10L M60*2 660mm 219mm 41kg


    Working Principle

    Hydraulic bladder accumulator working principle

    Note: The hydraulic accumulator is equipped with a one-way gas valve and can be recharged with gas. The silver one is the protective cover of the gas valve.

    Matching One-Way Valve Specifications

    • Inflatable Tool Interface Size: M14*1.5
    • Bladder Accumulator Interface Size: M16*1.5

    Applications

    Hydraulic bladder accumulator is a type of hydraulic accumulator that use a flexible bladder to separate gas and hydraulic fluid, widely used in hydraulic systems in aerospace, automotive, marine industries and industrial applications.

    hydraulic accumulator applicationsTips: What is a bladder accumulator?

    A bladder accumulator is a type of hydraulic accumulator that uses a flexible bladder to store hydraulic fluid under pressure. The bladder is typically made of a durable, elastic material such as rubber or synthetic elastomers. It is housed inside a pressure vessel with an inlet and outlet for the hydraulic fluid.

    When hydraulic fluid is pumped into the bladder accumulator, it compresses the bladder and stores the hydraulic fluid under pressure. This stored energy can be used later to provide a burst of hydraulic power when needed.

    Bladder accumulators are commonly used in hydraulic systems where a large amount of energy is required for short periods of time. They are particularly useful in applications where a constant and steady hydraulic power output is not required, as the bladder accumulator can release the stored energy rapidly in short bursts.

    Bladder accumulators can store hydraulic fluid in volumes ranging from a few liters to several hundred liters, depending on the specific application requirements. They are commonly used in industrial applications such as hydraulic presses, lifts, cranes, and heavy machinery, as well as in mobile applications such as excavators, bulldozers, and dump trucks.
