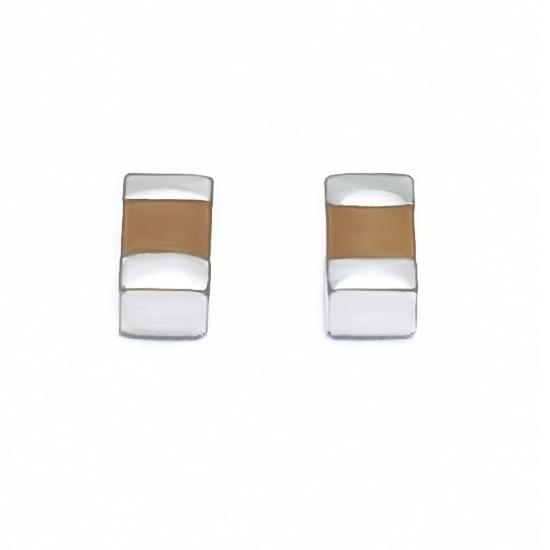

2.2μF 10V Multilayer Ceramic Chip Capacitor

SMD Multilayer ceramic chip capacitor is stable and has high capacitance. Laminated monolithic structure, excellent solderability and solder resistance, MLCC capacitors are suitable for reflow and wave soldering, various filtering and coupling circuits.

Specification

• Model: ATO-10V225K0402
• Series: Multilayer Ceramic Chip Capacitor
• Capacitance: 2.2μF (2200000pF, 2200nF)
• Rated voltage: 10V
• Tolerance: 10%
• Operating Temperature Range: -40℃ - 105℃
• Lead Type: SMD
• Size: 1.5mm
• Thickness: 0.5mm
• Package: 1000PCS / 1 roll
• Application: Household Appliances
• Medium Material: Ceramic (Porcelain)
• Loss: 0.01%
• Weight: 0.5kg

Structure

Tips: What is the multilayer ceramic chip capacitor used for?

SMD ceramic capacitors are mainly to remove the crosstalk of various high-frequency signals generated by the chip itself to other chips, so that each chip module can work normally without interference. In the high-frequency electronic oscillation circuit, the chip capacitor and the crystal oscillator and other components together form an oscillation circuit to provide the required clock frequency for various circuits. SMD ceramic capacitors are non-polar and have a small capacity. Generally, they can withstand high temperature and voltage, and are often used for high-frequency filtering. Ceramic capacitors look a bit like chip resistors, but there is no number representing the size of the chip capacitor. SMD capacitors are characterized by long life, high temperature resistance, high accuracy, and excellent performance in filtering high-frequency waves. It is used in low-frequency filter circuits with small capacity.
