    2" Pneumatic Wafer Butterfly Valve

    5 out of 5 based on 1 reviews | Write a review
    $195.89

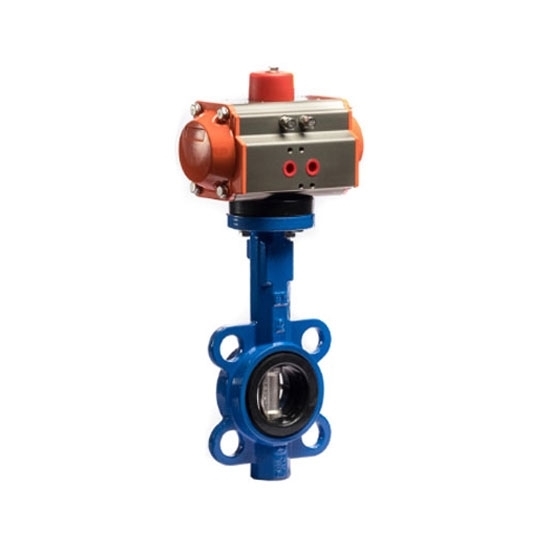

    Low price 2 inch (DN50) pneumatic wafer style butterfly valve for sale, comes with 50mm port size, working pressure PN16. Selectable cast iron wafer type or PVC type with pneumatic actuator, the air actuated butterfly control valve is high performance and reliable.
    *
    SKU: ATO-PBV-50
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Favorable price 2 inch pneumatic butterfly valve consists of a pneumatic actuator and a cast iron or PVC butterfly valve that comes with a 50mm (DN50) port and high performance disc. Our air actuated butterfly valve can work at high temperature below 100 °C, which is a reliable device for flow control.

    Specification

    Butterfly Valve Model ATO-PBV-50
    Media Water, Air, Gas, Oil, Liquid, etc.
    Butterfly Valve Type Wafer Type PVC Type
    Port Size 2 inch (DN50, 50mm)
    Body Material Cast Iron PVC
    Disc Material Stainless Steel (SS) UPVC
    Seat Material EPDM
    Working Temperature -10 °C to 120 °C
    Pneumatic Actuator Model ATO-AT063D
    Actuator Type Double Acting
    Bore Size 63mm
    Air Pressure 0.25 - 0.8MPa, PN16
    Pressure Difference 0 - 1.0MPa
    Air Supply Port 1/4 inch
    Actuator Material Aluminum Alloy


    Wafer Butterfly Valve Body Dimension (Unit: mm)

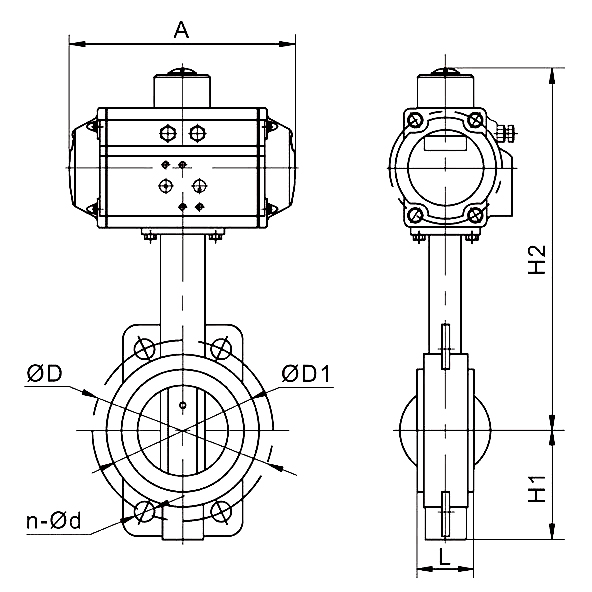

    Body dimensions of pneumatic actuated wafer type butterfly valve

    DN L H1 H2 A D D1 N-φd
    50 42 80 276 167 120 99 4-23


    PVC Butterfly Valve Body Dimension (Unit: mm)

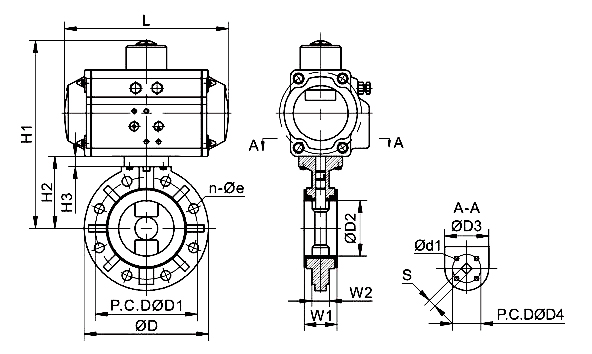

    Body dimension of pneumatic actuated PVC butterfly valve

    JIS ANSI DIN D D2 D3 H2 H3 W1 W2 d1 D4 S H L
    D1 n-φe D1 n-φe D1 n-φe
    120 4-19 120.5 4-19 125 4-18 160 56.5 105 103 13 43 29 6.5 50 14 230 167


    Pneumatic Actuator Dimension (Unit: mm)

    Pneumatic actuator dimension

    ATO-AT063D

    Q A B C D E F G H I
    Φ36/Φ50mm 167mm 82mm 35mm 47mm 113mm 85mm 30mm 80mm PF
    J K O P S T U V W X
    M6 1/4" 20mm 40.5mm 4mm 4mm 12mm 24mm 16mm 32mm

    Details

    2" Pneumatic Wafer Butterfly Valve Details

    Tips: Pneumatic butterfly valve working principle

    The pneumatic butterfly valve uses a circular butterfly plate that rotates with the valve stem to open and close, and the pneumatic valve that realizes the activation action is mainly used as a cut-off valve, and can also be designed to have the function of adjustment or segment valve and adjustment. Increasing use of medium diameter pipes.

    The pneumatic butterfly valve is simple in structure, small in size and light in weight. And it only needs to rotate 90° to open and close quickly, the operation is simple, and the electric valve has good fluid control characteristics. When the butterfly valve is in the fully open position, the thickness of the butterfly plate is the single resistance when the medium flows through the valve body, so the pressure drop generated by the valve is very small, so it has better flow control characteristics. Butterfly valves have two types of seals, including elastic seal and metal seal. The sealing ring can be inlaid on the valve body or attached to the periphery of the disc.

    If the butterfly valve is required to be used for flow control, it is necessary to select the correct size and type of the valve. The structural principle of the butterfly valve is especially suitable for making large-diameter valves. Butterfly valves are not only widely used in general industries such as petroleum, gas, chemical, water treatment, etc., but also in the cooling water system of thermal power plants.
