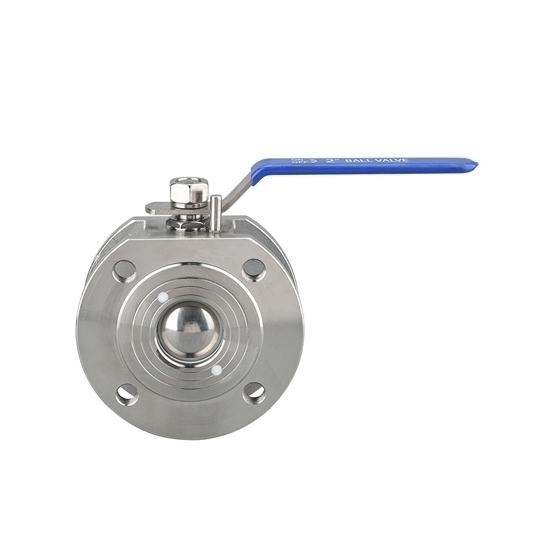

ATO stainless steel wafer ball valve with 2 inch (DN50) port, can come with various actuation methods, such as manual (lever or gear), electric, or pneumatic actuators, depending on the specific application requirements.
Specification
- Model: ATO-Q41F-(16-64)C-DN50
- Type: Wafer Type Flanged Ball Valve
- Port Size: 2 inch (DN50)
- Body Material: Stainless Steel
- Ball Material: Stainless Steel
- Stem Material: Stainless Steel
- Sealing Material: PTFE
- Gland Packing: PTFE
- Nominal Pressure: 1.6Mpa
- Strength Testing Pressure: 2.4Mpa
- Seat Testing Pressure: 0.6Mpa
- Applicable Media: Water, Oil, Gas
- Applicable Temperature: -29℃~150℃
Dimension (Unit: mm)
Size |
DN |
L |
D |
D1 |
D2 |
t |
C |
N-φd |
DN50 |
50 |
72 |
160 |
125 |
102 |
3 |
18 |
4-M16 |
H |
h |
W |
A |
B |
R |
r |
K |
120 |
15 |
200 |
70 |
50 |
4.5 |
3.5 |
14 |
Tips: Do wafer ball valves need gaskets?
Wafer ball valves typically do not require gaskets in the traditional sense. These valves are designed to be sandwiched between flanges, and their construction includes a wafer-style body that fits between the flanges without the need for additional gaskets. The valve's design provides a tight seal when the flanges are tightened together. The absence of a gasket simplifies installation and maintenance.
However, it's important to note that while wafer ball valves may not use traditional gaskets, they may still incorporate other sealing elements, such as O-rings or elastomeric seals, to ensure a proper seal and prevent leakage. Users should follow the manufacturer's guidelines and specifications for the specific valve model to understand the sealing mechanisms employed and ensure proper installation and performance.
