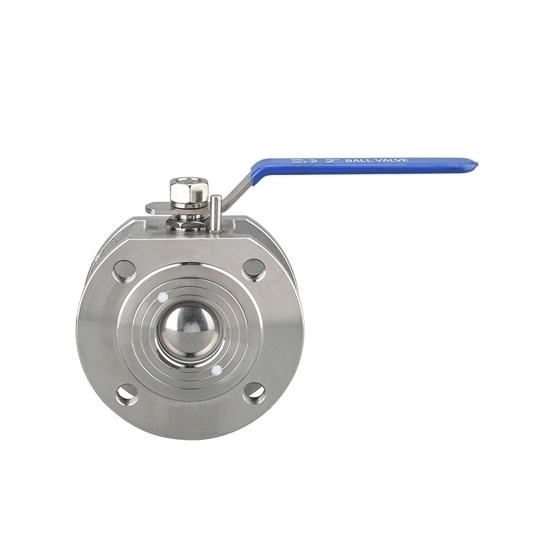

3" Stainless Steel Wafer Ball Valve

Note: This ball valve cannot be used for drinking water.

3 inch (80mm) wafer type ball valve is a type of quarter-turn valve with a full port design that indicates the bore of the ball is larger, minimizing flow restrictions and maximizing flow capacity.

Specification

• Model: ATO-Q71F-PN16-DN80
• Type: Wafer Type Flanged Ball Valve
• Port Size: 3 inch (DN80)
• Body Material: 304 Stainless Steel
• Ball Material: 304 Stainless Steel
• Stem Material: 304 Stainless Steel
• Sealing Material: PTFE
• Gland Packing: PTFE
• Nominal Pressure: 1.6Mpa
• Strength Testing Pressure: 2.4Mpa
• Seat Testing Pressure: 0.6Mpa
• Applicable Media: Water, Oil, Gas
• Applicable Temperature: -20℃~180℃

Dimension (Unit: mm)

Main Parts Materials

Tips: How to install a wafer ball valve?

To install a wafer ball valve, start by ensuring the pipeline is clean and free of debris. Position the valve between flanges, aligning the bolt holes. Place the gaskets on each side of the valve, ensuring a proper seal. Insert bolts through the holes and tighten them evenly to secure the valve in place. Check the alignment to avoid any misalignment issues. Once properly positioned, torque the bolts according to the manufacturer's specifications. Verify that the valve operates smoothly and check for any leaks. Finally, conduct a pressure test to ensure the valve's integrity.
