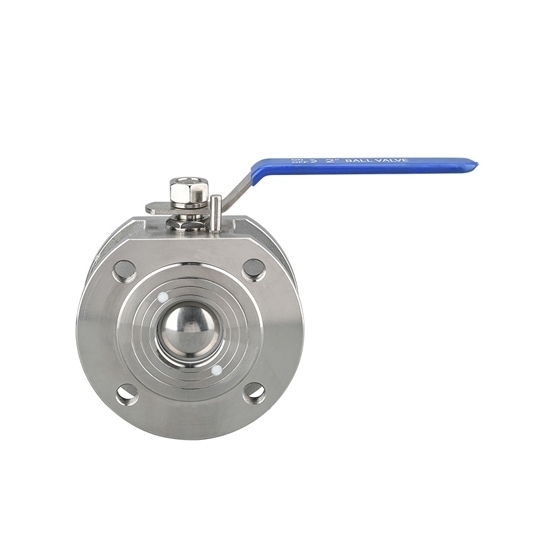

    3/4" Stainless Steel Wafer Ball Valve

    $118.19
    Economical price wafer type ball valve features 304 stainless steel (SS) construction and 3/4 inch (DN20) flanged port, ensuring durability and corrosion resistance. Designed with a full port for flow and liquid control in water heaters and water systems. This wafer style ball valve operates seamlessly with a handle, electric or pneumatic actuator, providing versatile control options.
    SKU: ATO-WBV-DN20
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    ATO stainless steel wafer ball valve can come with various actuation methods, such as manual (lever or gear), electric, or pneumatic actuators, depending on the specific application requirements.

    Specification

    • Model: ATO-Q41F-(16-64)C-DN20
    • Type: Wafer Type Flanged Ball Valve
    • Port Size: 3/4 inch (DN20)
    • Body Material: 304 Stainless Steel
    • Ball Material: 304 Stainless Steel
    • Stem Material: 304 Stainless Steel
    • Sealing Material: PTFE
    • Gland Packing: PTFE
    • Nominal Pressure: 1.6Mpa
    • Strength Testing Pressure: 2.4Mpa
    • Seat Testing Pressure: 0.6Mpa
    • Applicable Media: Water, Oil, Gas
    • Applicable Temperature: -29℃~150℃

    Dimension (Unit: mm)

    Stainless steel wafer ball valve dimension

    Size DN d D D1 D2 T f H L±1.5 W Z-M
    DN20 20 18 105 75 58 14 2 37.5 40.5 110 4-M12


    Main Parts Materials

    No. Part Name Material Quantity
    1 Body SS304 1
    2 Cap SS304 1
    3 Seat PTFE 2
    4 Ball SS304 1
    5 Stem Washer PTFE 1
    6 Packing PTFE 1
    7 Stem SS304 1
    8 Gland SS304 1
    9 Nut SS304 2
    10 Handle SS304 1
    11 Handle Cover PVC 1

    Tips: Can I use a wafer ball valve for the main water shut-off?

    Using a wafer ball valve for the main water shut-off can be a viable option depending on specific requirements. Wafer ball valves are compact and suitable for applications with limited space. However, ensure the valve meets the necessary pressure and temperature ratings for your main water supply. Additionally, consider factors such as the material of the valve, installation conditions, and local plumbing codes. It's crucial to select a valve that complies with industry standards and is appropriate for the intended use. Consulting with a professional plumber or adhering to local regulations will help ensure the safety and effectiveness of using a wafer ball valve for your main water shut-off. Regular maintenance and periodic inspections are essential to guarantee the valve's reliable performance over time.
