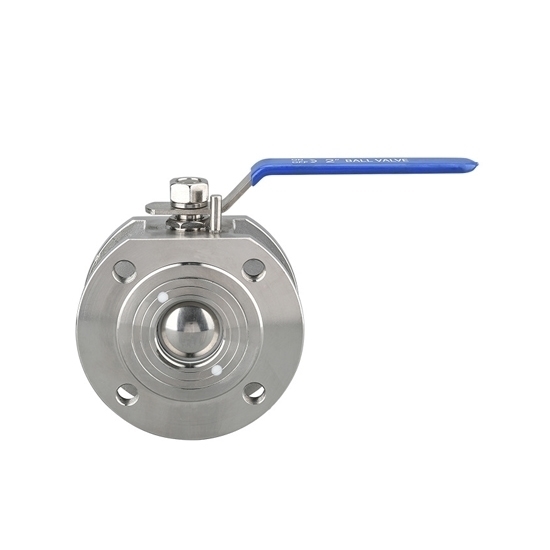

1-1/4 inch (32mm) wafer type ball valve is a type of SS ball valve designed for use in pipelines to control the flow of fluids. When the hole aligns with the flow path, the valve is open, allowing fluid to pass through. When the ball is rotated 90 degrees, the hole is perpendicular to the flow path, blocking the flow and closing the valve.
Specification
- Model: ATO-Q41F-(16-64)C-DN32
- Type: Wafer Type Flanged Ball Valve
- Port Size: 1-1/4 inch (DN32)
- Body Material: 304 Stainless Steel
- Ball Material: 304 Stainless Steel
- Stem Material: 304 Stainless Steel
- Sealing Material: PTFE
- Gland Packing: PTFE
- Nominal Pressure: 1.6Mpa
- Strength Testing Pressure: 2.4Mpa
- Seat Testing Pressure: 0.6Mpa
- Applicable Media: Water, Oil, Gas
- Applicable Temperature: -29℃~150℃
Dimension (Unit: mm)
Size |
DN |
d |
D |
D1 |
D2 |
T |
f |
H |
L±1.5 |
W |
Z-M |
DN32 |
32 |
28 |
133 |
100 |
78 |
15 |
2 |
52.5 |
57 |
171 |
4-M16 |
Main Parts Materials
No. |
Part Name |
Material |
Quantity |
1 |
Body |
SS304 |
1 |
2 |
Cap |
SS304 |
1 |
3 |
Seat |
PTFE |
2 |
4 |
Ball |
SS304 |
1 |
5 |
Stem Washer |
PTFE |
1 |
6 |
Packing |
PTFE |
1 |
7 |
Stem |
SS304 |
1 |
8 |
Gland |
SS304 |
1 |
9 |
Nut |
SS304 |
2 |
10 |
Handle |
SS304 |
1 |
11 |
Handle Cover |
PVC |
1 |
Tips: What are the advantages of a wafer ball valve?
Wafer ball valves offer several advantages in industrial applications. Their compact design and lightweight construction make them easy to install and cost-effective. The wafer style, with a flangeless body, reduces the overall weight and footprint, making them suitable for space-constrained installations. Additionally, these valves provide excellent sealing capabilities, ensuring minimal leakage. Their quick-acting, quarter-turn operation allows for swift and efficient control of fluid flow. Wafer ball valves are versatile, compatible with various media, and exhibit high durability, resisting corrosion and wear. The reduced torque requirements contribute to energy efficiency. Overall, the advantages of wafer ball valves lie in their compact design, easy installation, reliable sealing, versatility, and efficient flow control, making them a preferred choice in diverse industrial settings.
