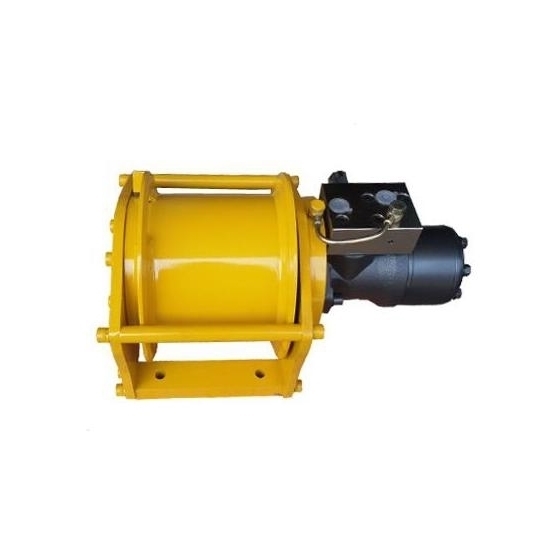

    2000 lbs Hydraulic Winch

    Industrial hydraulic winch for sale at favorable price, comes with 8mm diameter rope, 2000 lbs (1 ton) capacity, planetary reduction ratio 1:5.23, rope speed 0~45 m/min. This hydraulic winch is used for lifting or pulling tractor, skid steer, rollback, truck and excavator by hydraulic power.
    SKU: ATO-HWINCH-2000
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Hydraulic winch is a mechanical device that uses hydraulic power to operate and is commonly used for heavy-duty lifting and pulling tasks. It consists of a hydraulic motor, a drum or spool, and a control valve system.


    Model ATO-HW05-10
    The 1st Layer Pull 2000 lbs (1 ton)
    Rope Speed 0~45 m/min
    Working Pressure Differential 11 Mpa
    Oil Flow Supply 56 L/min
    Rope Diameter 8mm
    Hydraulic Motor BMR-125
    Planetary Reduction Ratio 1:5.23
    Layer Wire Rope Capacity
    1 10m
    2 21m
    3 33m
    4 45m

    Note*: Never exceed working load limit.

    Dimensions (Unit: mm)

    2000 lbs (1 ton) Hydraulic Winch Dimensions

    Tips: Hydraulic winch application

    Hydraulic winches are versatile tools used in a wide range of applications that require heavy lifting or pulling. They utilize hydraulic power to operate and are commonly found in industries such as construction, mining, marine, forestry, and off-road vehicle recovery. Here are some common applications of hydraulic winches:

    • Off-Road Vehicle Recovery: Hydraulic winches are commonly used in off-road vehicles, such as 4x4 trucks, SUVs, and recreational vehicles, to recover stuck or stranded vehicles. They can provide the necessary pulling power to tow a vehicle out of mud, sand, or other challenging terrains.
    • Construction and Building: Hydraulic winches are used in various construction activities. They can be mounted on cranes, trucks, or other heavy machinery to assist in lifting and moving heavy materials, such as steel beams, concrete forms, and equipment.
    • Forestry and Logging: Hydraulic winches find applications in forestry and logging operations. They are used to drag felled trees to a processing area or to extract logs from difficult terrains. These winches are often mounted on specialized logging equipment like skidders or forwarders.
    • Marine and Boating: Hydraulic winches are commonly used on boats and ships for various tasks, such as anchoring, mooring, and towing. They can be used to raise and lower anchors, pull in heavy fishing nets, or assist in docking operations.
    • Mining and Extraction: Hydraulic winches play a crucial role in mining operations. They are used for hauling heavy loads, extracting minerals, and moving equipment underground. These winches are designed to operate reliably in challenging environments, including mineshafts and tunnels.
    • Oil and Gas Industry: Hydraulic winches are utilized in the oil and gas industry for various tasks, including rigging, pipe laying, and well servicing. They provide the power needed to lift and move heavy equipment and materials in onshore and offshore operations.
    • Emergency and Recovery Services: Hydraulic winches are often used by emergency and recovery services, such as fire departments, towing companies, and rescue teams. They are employed to recover vehicles involved in accidents, extricate trapped individuals, or assist in other emergency situations.
    • Military and Defense: Hydraulic winches have applications in the military sector for various purposes, including vehicle recovery, aircraft maintenance, and logistical operations. They can be used to recover damaged or disabled military vehicles or to support construction and engineering tasks.
