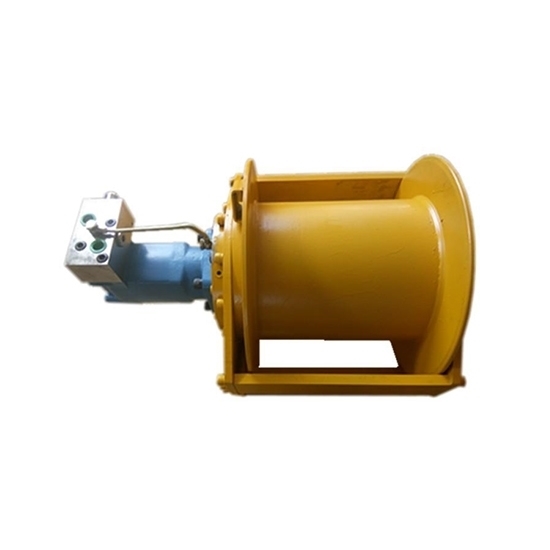

    5000 lbs Hydraulic Winch

    Buy 5000 lbs (2-1/2 ton) hydraulic winch at factory price. It comes with 12mm diameter rope, planetary reduction ratio 1:5, rope speed 0~35 m/min. Industrial hydraulic winch is a tool for lifting or pulling tractor, skid steer, rollback, truck and excavator using hydraulic power.
    SKU: ATO-HWINCH-5000
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Hydraulic winch is a device that uses hydraulic power to reel in or let out a cable or rope. It is commonly used in heavy-duty applications such as towing, construction, and off-road vehicles. The hydraulic system provides the necessary force and control for efficient pulling and lifting operations.


    Model ATO-HW30-25
    The 1st Layer Pull 5000 lbs (2.5 ton)
    Rope Speed 0~35 m/min
    Working Pressure Differential 15 Mpa
    Oil Flow Supply 75 L/min
    Rope Diameter 12mm
    Hydraulic Motor BMR-305
    Planetary Reduction Ratio 1:5
    Layer Wire Rope Capacity
    1 18m
    2 38m
    3 59m
    4 80m
    5 110m

    Note*: Never exceed working load limit.

    Dimensions (Unit: mm)

    5000 lbs (2.5 ton) Hydraulic Winch Dimensions

    Tips: How to use a hydraulic winch?

    A hydraulic winch is a powerful device commonly used for lifting, pulling, or towing heavy loads. To operate a hydraulic winch, follow these steps:

    • Familiarize yourself with the winch components: Identify the hydraulic motor, spool, control valves, hydraulic hoses, and any additional features such as a clutch or brake.
    • Connect the winch to a hydraulic power source: Attach the winch's hydraulic hoses to the power source, which could be a hydraulic pump or the hydraulic system of a vehicle.
    • Ensure proper fluid level and pressure: Check the hydraulic fluid level and ensure it meets the manufacturer's specifications. Start the hydraulic power source and adjust the pressure to the recommended level for the winch.
    • Attach the load: Securely fasten the load to the winch using appropriate attachments like cables, chains, or straps. Make sure the load is within the winch's rated capacity.
    • Engage the controls: Operate the winch using the control valves. Depending on the winch model, you may have separate controls for direction, speed, and braking. Follow the manufacturer's instructions for proper operation.
    • Monitor the operation: Keep a close eye on the winch while it is in use. Ensure that the load is moving smoothly and that the winch does not exceed its capacity or strain excessively.
    • Disengage the winch: Once the load has been moved or the task is completed, release the controls, and disengage the winch. Safely detach the load from the winch, ensuring no tension remains on the winch's components.

    Always consult the manufacturer's manual for specific instructions regarding the operation, maintenance, and safety guidelines for your hydraulic winch.
