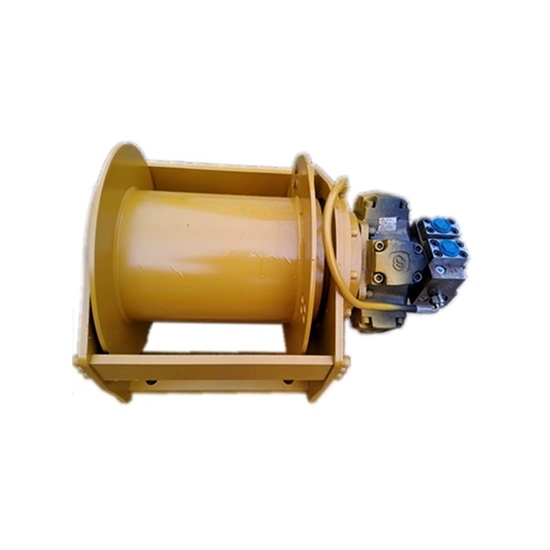

    8000 lbs Hydraulic Winch

    Hydraulic winch is a tool for lifting or pulling heavy loads using hydraulic power. ATO 8000 lbs (4 ton) hydraulic winch comes with 14mm diameter rope, planetary reduction ratio 1:6, rope speed 0~45 m/min, widely used for tractor, skid steer, rollback, truck and excavator.
    SKU: ATO-HWINCH-8000
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Hydraulic winch is a device that uses hydraulic power to reel in or let out a cable or rope. It is commonly used in heavy-duty applications such as towing, construction, and off-road vehicles. The hydraulic system provides the necessary force and control for efficient pulling and lifting operations.


    Model ATO-HW50S-40
    The 1st Layer Pull 8000 lbs (4 ton)
    Rope Speed 0~45 m/min
    Working Pressure Differential 16 Mpa
    Oil Flow Supply 120 L/min
    Rope Diameter 14mm
    Hydraulic Motor BMR-300
    Planetary Reduction Ratio 1:6
    Layer Wire Rope Capacity
    1 21m
    2 44m
    3 70m
    4 97m
    5 125m

    Note*: Never exceed working load limit.

    Dimensions (Unit: mm)

    8000 lbs (4 ton) Hydraulic Winch Dimensions

    Tips: What is the advantage of a hydraulic winch?

    A hydraulic winch offers several advantages over other types of winches, such as electric or mechanical winches. Here are some of the key advantages of a hydraulic winch:

    • High power and torque: Hydraulic winches are capable of delivering high amounts of power and torque, making them suitable for heavy-duty applications. They can handle large loads and provide consistent pulling force even in challenging conditions.
    • Continuous operation: Hydraulic winches can operate continuously without the risk of overheating. Since hydraulic systems rely on fluid power, they can handle prolonged use without the need for cool-down periods. This makes hydraulic winches ideal for demanding tasks that require extended operation times.
    • Variable speed and control: Hydraulic winches offer precise control over speed and pulling force. By adjusting the flow rate and pressure of the hydraulic fluid, operators can achieve fine-tuned control over the winch's operation. This versatility is particularly useful in applications that require precise positioning or delicate handling of loads.
    • Safety features: Hydraulic winches often come equipped with built-in safety features. These may include overload protection systems, automatic braking mechanisms, and emergency stop functions. These safety features help prevent accidents, protect equipment, and ensure operator safety.
    • Durability and ruggedness: Hydraulic winches are known for their durability and ability to withstand harsh environments. They are typically designed to handle heavy loads, extreme weather conditions, and rough terrains. The hydraulic components are often built to be robust and resistant to damage, making hydraulic winches suitable for demanding industries such as construction, mining, and offshore operations.
    • Adaptability: Hydraulic winches can be easily integrated into existing hydraulic systems, making them compatible with a wide range of machinery and equipment. This adaptability allows for flexibility in various applications and enables easy customization based on specific requirements.
