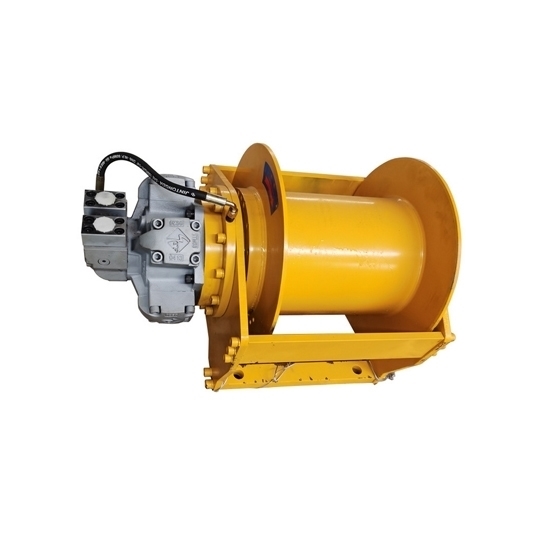

    16000 lbs Hydraulic Winch

    Heavy duty hydraulic winch comes with 8mm diameter rope for sale at economic price, 16000 lbs (8 ton) capacity, planetary reduction ratio 1:22, rope speed 0~25 m/min. This hydraulic winch is used for lifting or pulling heavy loads using hydraulic power on tractor, skid steer, rollback, truck and excavator.
    SKU: ATO-HWINCH-16000
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Hydraulic winch is a mechanical device that uses hydraulic power to operate and is commonly used for heavy-duty lifting and pulling tasks. It consists of a hydraulic motor, a drum or spool, and a control valve system.


    Model ATO-HW80-80
    The 1st Layer Pull 16000 lbs (8 ton)
    Rope Speed 0~25 m/min
    Working Pressure Differential 16 Mpa
    Oil Flow Supply 120 L/min
    Rope Diameter 22mm
    Hydraulic Motor BMR-350
    Planetary Reduction Ratio 1:22
    Layer Wire Rope Capacity
    1 20m
    2 44m
    3 68m
    4 94m

    Note*: Never exceed working load limit.

    Dimensions (Unit: mm)

    16000 lbs (8 ton) Hydraulic Winch Dimensions

    Tips: Hydraulic winch used for truck

    A hydraulic winch is an essential component used in trucks for various heavy-duty operations. It is a mechanical device that utilizes hydraulic power to effectively and safely recover or move heavy objects. The winch consists of a drum and a spooling system, with a hydraulic motor providing the power to wind and unwind the cable or rope. This mechanism enables the winch to exert significant pulling force, allowing trucks to handle tasks like vehicle recovery, loading/unloading cargo, and off-road maneuvers. Hydraulic winches offer several advantages, including high pulling capacity, smooth and controlled operation, and the ability to handle demanding applications in challenging terrains.
