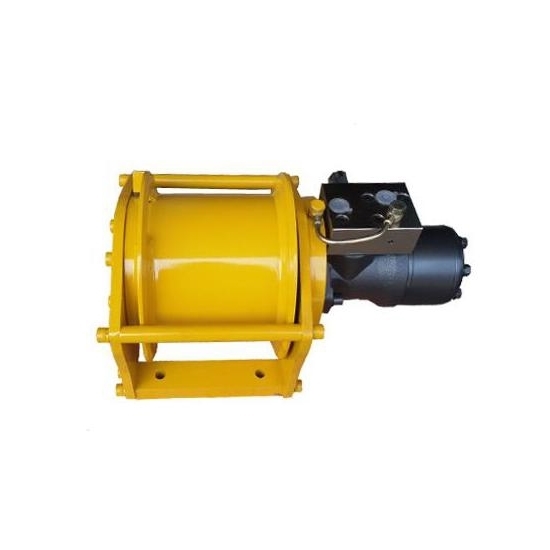

Hydraulic winch is a mechanical device that uses hydraulic power to operate and is commonly used for heavy-duty lifting and pulling tasks. It consists of a hydraulic motor, a drum or spool, and a control valve system.
Specification
Model |
ATO-HW05-05 |
The 1st Layer |
Pull |
1000 lbs (0.5 ton) |
Rope Speed |
0~40 m/min |
Working Pressure Differential |
10 Mpa |
Oil Flow Supply |
36 L/min |
Rope Diameter |
6mm |
Hydraulic Motor |
BMR-80 |
Planetary Reduction Ratio |
1:5.23 |
Layer |
Wire Rope Capacity |
1 |
13m |
2 |
27m |
3 |
42m |
4 |
58m |
Note*:
- Never exceed working load limit.
- This hydraulic winch does not include wire rope.
- If you want to purchase wire rope, please contact us.
Dimensions (Unit: mm)
Tips: What is a hydraulic winch?
A hydraulic winch is a device used to pull or lift heavy loads using hydraulic power. It consists of a winch drum, which is a cylindrical spool around which a cable or rope is wound, and a hydraulic motor that drives the drum's rotation. Hydraulic winches are commonly used in various industries, including construction, marine, forestry, and off-road vehicles.
The hydraulic power for operating the winch is typically supplied by a hydraulic system, which consists of a hydraulic pump, hydraulic fluid reservoir, control valves, and hydraulic hoses. The pump generates hydraulic pressure by converting mechanical power into fluid power, which is then transmitted to the winch motor through the hydraulic hoses.
The winch drum is equipped with a clutch mechanism that allows it to rotate in either direction. When the hydraulic motor is activated, it drives the drum to wind or unwind the cable, depending on the desired operation. The cable or rope attached to the winch drum is then used to pull or lift heavy objects.
Hydraulic winches are known for their robustness and high pulling capacities. They offer greater pulling power compared to electric winches of similar size, making them suitable for heavy-duty applications. Additionally, hydraulic winches can provide continuous pulling power without overheating, as the hydraulic system effectively manages heat dissipation.
Overall, hydraulic winches are versatile and reliable tools for various industrial applications that require powerful and controlled pulling or lifting capabilities.
