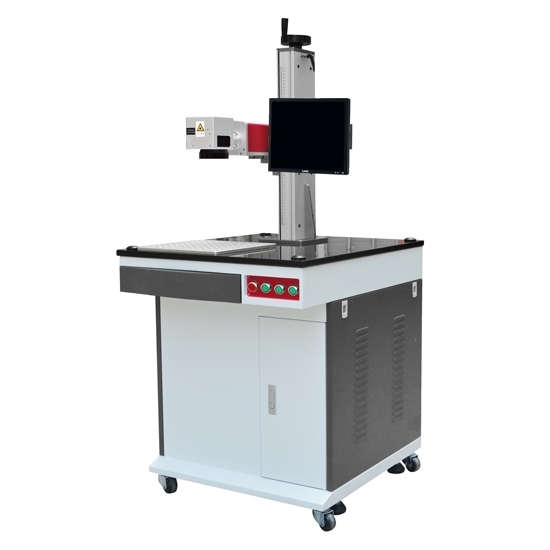

    20w Economic Movable Fiber Laser Marking Machine

    Favorable price fiber laser marking machine, faster marking speed, more sophisticated engraving effect, 20w output power, wheels make more flexible and movable, maintenance-free.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Fiber laser marking system features:

    • Marble platform for high accuracy marking.
    • Marks widest variety of materials, including steel, titanium, aluminum, copper, ceramics and some plastics.
    • 100,000+ hours of laser life, reducing costs and production downtime.
    • 110mm2 mark field (other sizes available).
    • No consumables and minimal maintenance help reduce operating costs.
    • Air-cooled 10W-20W models.
    • Higher beam quality than flash lamp, diode pumped and vanadate, resulting in a high quality mark.
    Basic Information
    Model ATOF20MD
    Weight 220.46 lbs. (100 kg)
    Dimension 600mm x 750mm x 1430mm (23.62" x29.53"x56.30")
    Warranty 2 Years
    Distance (scanner to working plateform) 97~387mm (3.82" x 15.24")
    Platform size 300mm x 300mm (11.81" x 11.81")
    System Technical Specifications
    Laser type Fiber; Ytterbium doped
    Output power 10W, 20W
    Power requirements 10W 20W: 220 V AC, 16 A, 50/60 Hz
    Wavelength 1070 nm
    M2 <1.4
    Operation mode Pulsed
    Pulse rep rate 20-80 kHz
    Cooling 10-20W: Fan assisted air cooling
    Scanning method XY galvanometer
    Max line speed 7,000 mm/sec
    Controls LEC 1 industrial computer based controller
    Communications USB ports, Ethernet, EtherNet/IP™, RS232
    Documentation USB flashdrive with operator's manual and integration guide; Online video troubleshooting
    Lens Configurations
    Lens Marking field Focal length
    100mm 65mm x 65mm (2.5" x 2.5") 97mm (3.82")
    160mm 110mm x 110mm (4.3" x 4.3")  175mm (6.89")
    254mm 175mm x 175mm (6.9" x 6.9") 296mm (11.65")
    330mm 228.6mm x 228.6mm (9" x 9") 387mm (15.23")

    Material: Plastic, steel, stainless steel, magal, zinc alloy, copper, nickeling, zincing, alox.

    Tips: How to regulate the focal distance of the laser marking machine?

    1. Rising and falling the working platform
      From the perspective of the market, the rising and falling of the working platform is the most-frequently used approach at present. It has simple principle and cheap manufacturing price. The revolving pulley is mainly used as the medium of moving up and down. By matching a guide pipe and a nut revolving component, the angle will be regulated through the revolving controlling button on the platform, thus achieving the regulation of the focus length.
    2. Rising and falling the resonant cavity
      The rising and falling of the resonant cavity is to make use of the shape and relatively position of the two mirrors of the resonant cavity inside the laser marking machine to have light source reflection. The light reflection of the resonant cavity is also divided into a concave cavity and a convex cavity. No matter what kind of resonant cavity is used, it is for the focusing as well as the light beam rising and falling of the laser marking machine.
