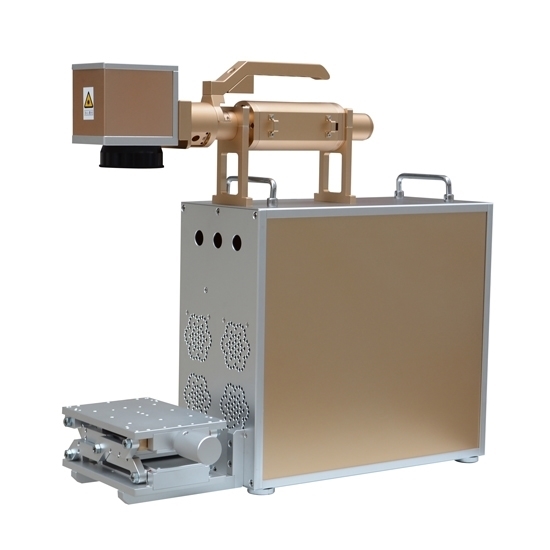

    20w Handheld Fiber Laser Marking Machine

    5 out of 5 based on 1 reviews | Write a review
    Handheld fiber laser marking machine with excellent quality and reasonable price, 20w output power, faster marking speed, more sophisticated engraving effect, integrated module design, maintenance-free.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Fiber laser marking system features:

    • Marks widest variety of materials, including steel, titanium, aluminum, copper, ceramics and some plastics.
    • 100,000+ hours of laser life, reducing costs and production downtime.
    • 110mm2 mark field (other sizes available).
    • No consumables and minimal maintenance help reduce operating costs.
    • Air-cooled 10W-20W models.
    • Higher beam quality than flash lamp, diode pumped and vanadate, resulting in a high quality mark.
    Basic Information
    Model ATOF20PH
    Weight 44 lbs. (20 kg)
    Dimension 700mm x 210mm x 600mm (27.56" x8.27"x23.62")
    Distance (scanner to working plateform) 160~284mm (6.3" x 11.18")
    Platform size 210mm x 150mm (8.27" x 5.91")
    Warranty 2 Years
    System Technical Specifications
    Laser type Fiber; Ytterbium doped
    Output power 10W, 20W
    Power requirements 10W 20W: 220 V AC, 16 A, 50/60 Hz
    Wavelength 1070 nm
    M2 <1.4
    Operation mode Pulsed
    Pulse rep rate 20-80 kHz
    Cooling 10-20W: Fan assisted air cooling
    Scanning method XY galvanometer
    Max line speed 7,000 mm/sec
    Controls LEC 1 industrial computer based controller
    Communications USB ports, Ethernet, EtherNet/IP™, RS232
    Documentation USB flashdrive with operator's manual and integration guide; Online video troubleshooting
    Lens Configurations
    Lens Marking field Focal length
    100mm 65mm x 65mm (2.5" x 2.5") 97mm (3.82")
    160mm 110mm x 110mm (4.3" x 4.3") 175mm (6.89")
    254mm 175mm x 175mm (6.9" x 6.9") 296mm (11.65")
    330mm 228.6mm x 228.6mm (9" x 9") 387mm (15.23")

    Material: Plastic, steel, stainless steel, magal, zinc alloy, copper, nickeling, zincing, alox.

    Tips: Application range of fiber laser marking machine
    Fiber laser marking machine is mainly applied in areas with high demands on the depth, smoothness and fineness. It supports multiple file formats and will automatically generate all kinds of serial number, production date, bar codes, QR codes and so on.

    1. Automobile machinery industry: Bearings, steel bushing, piston rings, engines, machine tools, etc.
    2. Electronic communication industry: Keyboards, electronic parts and components, household appliance panels, fiber optic cables, cables, etc.
    3. Hardware equipment industry: Tools, measuring tools, cutting tools, sanitary fittings, tableware, lock making, knives & scissors, medical apparatus, fitness equipment, stainless steel products, etc.
    4. Decorative buckle and label industry: Buttons, luggage buckles, belt buckles, gold and silver jewelry, signposts, chest cards, timecards, business cards, greeting cards, calendars, photos, wallets, belts, pens & pen boxes, certificates of awards, trophies, all kinds of certificates, collections, art works, stamps, plaques, etc.
    5. Instruments & glasses industry: Metal case, meter base, glasses frames, instrument & meter panels, etc.
    6. Packaging and bottle cap industry: Internal and external packages of tobacco, food, medicine and cosmetic products, metal bottle caps, ring-pull cans, etc.
