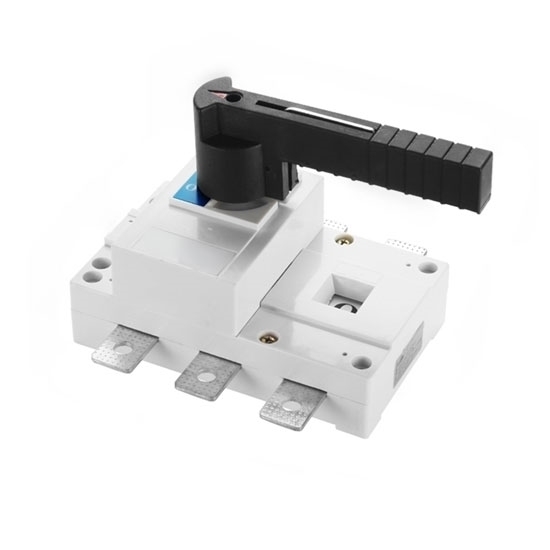

    250 Amps Isolator Switch, 3 Pole/ 4 Pole

    $196.89
    Low price 250 Amps load isolator disconnect switch, 3 pole or 4 pole can be selected, the power is 132kW when used at 380V and 110kW at 660V, small size, light weight, direct sale by manufacturer.
    *
    *
    SKU: ATO-IS-HGL250A
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    250 Amps Isolator Switch Features

    This convenient load isolator disconnect switch, 3 pole or 4 pole load isolator disconnect switch. It is a light weight, high performance and long life switch with 250 Amps. Widely used in various places and is worth your choice.
    In this video, we delve into the world of load break switches, mechanical devices capable of being operated while under load. We'll explore their functionality, applications in electrical systems, and provide a detailed breakdown of their features to equip you with a thorough comprehension of their advantages.

    250 Amps Disconnect Switch Specifications

    Basics Model ATOHGL-250A
    Pole 3 Pole/4 Pole
    Weight 3 Pole 2kg
    Technical Parameters 4 Pole 2.35kg
    Rated current 250A
    Rated insulation voltage Ui 690V
    Dielectric strength 1890V
    Rated surge-resistant voltage Uimp kV (installed category IV) 6
    Rated working current le 380V AC-21B 250A
    AC-22B 250A
    AC-23B 250A
    Motor power P(380V)kW 380V 132 kW
    660V 110 kW
    Rated short-time withstand current lcw(kA rms) 1.0s 9
    Rated breaking capability Icn(Arms) AC23 380VA 2000
    Rated making capacity Icm(Arms) AC23 380V 2500
    Rated short-current making capacity Icm'(Kapeak value) 15.3
    Mechanical durability (number of cyclic operation) 1400
    Electrical curability 380V 200
    Electric durability Ue=660V, Rated current COSφ=0.95AC21 1500
    COSφ=0.65AC22 1000
    COSφ=0.35AC23 500
    Working Environment Moment of operation 10 Nm
    Temperature -5℃~+55℃
    Way of working Continuously working
    Operating Handle
    Installation form Vertical
    Altitude ≤2000m
    Pollution level 3
    Overvoltage level
    IP level IP 20

    Dimension

    160A-630A  isolator switch dimension



    Current A B C D D1 E ΦL J K N P R S U ΦX Y F H
    250A/3P 180 170 144 35 104 84 5.5 160 90 105 50 25 40 206 11 37 95 20
    250A/4P 230 170 144 35 104 84 5.5 210 90 105 50 25 40 206 11 37 95 20

    250 Amps Isolator Switch Operation Mode

    63 amps load isolator disconnect switch

    Details

    250 Amps Isolator Switch Details

    Tips: The role of isolation switch

    1. After opening, establish a reliable insulation gap, and separate the equipment or lines that need to be overhauled from the power supply with an obvious disconnection point to ensure the safety of overhaul personnel and equipment.
    2. The isolating switch and the circuit breaker cooperate to carry out the switching operation to change the operation mode.
    3. It can be used to divide and combine small currents in the circuit, such as the charging current of bushings, busbars, connectors, short cables, the capacitance current of the switch voltage equalization capacitor, the circulating current when the double busbar is switched, and the excitation current of the voltage transformer Wait.
    4. According to the specific conditions of different structure types, it can be used to divide and combine the no-load excitation current of a certain capacity transformer.
