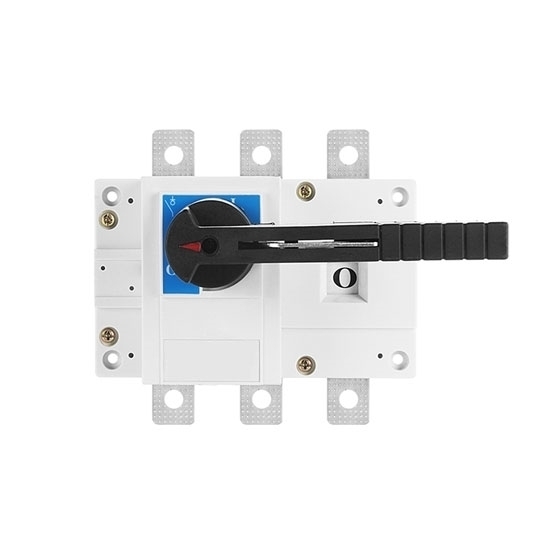

160 Amps Isolator Switch, 3 Pole/ 4 Pole

Write a review

$174.93

3 pole or 4 pole isolator switch, 160 amps, rated insulation voltage 690V. Its outer shell made of glass fiber reinforced unsaturated polyester resin has good flame retardancy, dielectric properties, carbonation resistance and impact resistance. Affordable price and high reliability.

Number of Poles *
Load Operation *

SKU: ATO-IS-HGL160A

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

160 Amps 3 pole isolator switch is widely used in the distribution system and automatic system of architecture, electrical power, petrochemical, and other industries. Cheap price and direct by factory.

3 Pole 4 Pole Isolator Switch Specifications

Basics	Model			ATOHGL-160A
	Pole			3 Pole/4 Pole
	Weight		3 Pole	1.2 kg
			4 Pole	1.4 kg
Technical Parameters	Rated current			160A
	Rated insulation voltage Ui			690V
	Dielectric strength			1890V
	Rated surge-resistant voltage Uimp kV (installed category IV)			8
	Rated working current le	380V	AC-21	160A
			AC-22	160A
			AC-23	160A
		660V	AC-21	160A
			AC-22	160A
			DC-23	80A
		220V	DC-21	160A
			DC-22	160A
			DC-23	125A
		440V	DC-21	125A
			DC-22	125A
			DC-23	125A
	Motor power P (380V) Kw		380V	80 Kw
			660V	75 kW
	Rated short-time withstand current lcw (kA rms)0.1s/ 1.0s			12
	Rated breaking capacity Icm (Arms) AC23 380VA			1600
	Rated making capacity Icm (Arms) AC23 380V			2500
	Rated short-current making capacity Icm' (Kapeak value)			17
	Mechanical durability (number of cyclic operation)			10000
	Electric durability Ue=660V, Rated current		COSφ=0.95AC21	1700
			COSφ=0.65AC22	100
			COSφ=0.35AC23	500
Working Environment	Moment of operation			1.2 Nm
	Temperature			-5℃~+55℃
	Way of working			Continuously working
	Operating			Handle
	Installation form			Vertical
	Altitude			≤2000m
	Pollution level			3
	Overvoltage level			Ⅲ
	IP level			IP 20

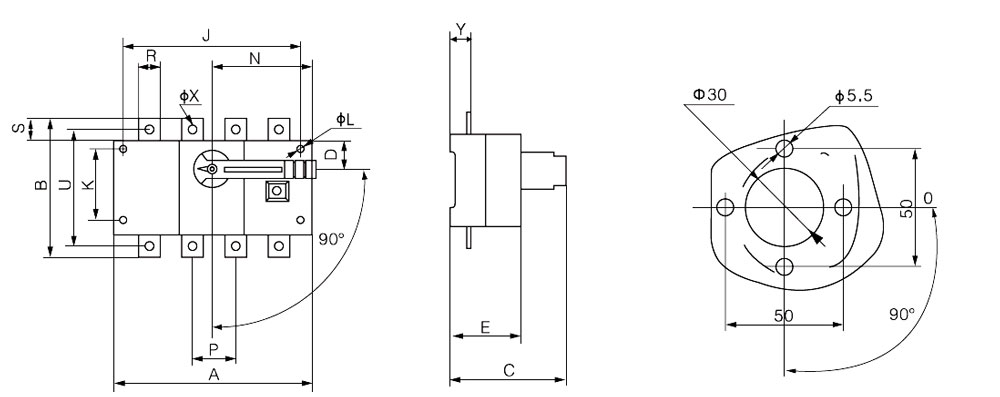

Dimension

Current	A	B	C	D	D1	E	ΦL	J	K	N	P	R	S	U	ΦX	Y	F	H
160A/3P	140	135	121	27	93	71	5.5	120	65	75	36	20	25	115	9	24	50	10
160A/4P	170	135	121	27	93	71	5.5	150	65	75	36	20	25	115	9	24	50	10

Operation Mode

Details

Tips: How to maintain Isolator switch?

The function of the isolating switch is very important. If there is a failure, it will bring great inconvenience to daily work and production, so daily maintenance work needs to be done. For example, you should always check the surface of the equipment to see if there are any weak or damaged parts. Sometimes the isolation switch needs to be used in a special environment, which may cause deformation and oxidation. If the situation is serious, it needs to be replaced in time. Heating at the contact parts is also common, which is related to many reasons, and sometimes requires power outage maintenance.

Load Break Switches Explained

In this video, we delve into the world of load break switches, mechanical devices capable of being operated while under load. We'll explore their functionality, applications in electrical systems, and provide a detailed breakdown of their features to equip you with a thorough comprehension of their advantages.

Different Types of Isolators and Their Uses

This video explains the popular types of switch isolators on the market and their potential applications in everyday and industrial use.

Load Break Switches Explained

Load break switch is a kind of mechanical switching device that can be opened and closed under load. In this video, we have explained what a load break switch is and what they can achieve in electrical applications , and most of all we have detailed the features of load break switches so as to give you a comprehensive understanding of their benefits.
