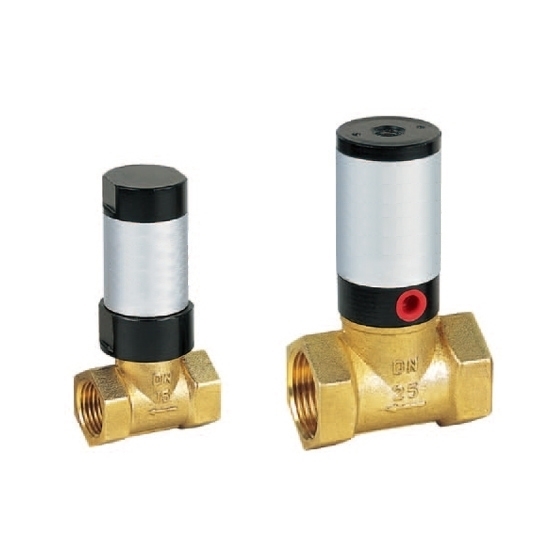

3/4" Air Control Valve, 2 Way, 2 Position

Note: This control valve cannot be used for drinking water.

Good price 2 way air control valve with pneumatic actuator, 2 position, 3/4 inch (DN20), single acting or double acting type, mainly used to control the fluid flow by opening or closing the pipe.

Specifications

• Model: ATO-Q22HD-20
• Nominal Diameter: DN20
• Connecting Thread: ZG3/4"
• Actuator: Pneumatic Actuator
• Type: 2 Way, 2 Position
• Product Form: Normally Closed
• Working Pressure: 0~1.0Mpa
• Valve Body Material: Brass
• Sealing Material: VITON/PTFE
• Medium Temperature: VITON: -5~150℃, PTFE: -10~180℃
• Flow Coefficient KV Value: 10
• Weight: 0.481kg
• Working Medium: Air, Water, Oil, Liquefied Petroleum Gas, and Fluid with Light Dynamic Viscosity

Dimensions (Unit: mm)

Applications

The air control valve has low starting pressure, high closing sensitivity, good sealing performance, and arbitrary import and export directions, widely used in food, medicine, industry, washing, petrochemical, metallurgy, spraying, vehicles and other mechanical equipment.

Tips: Why use an air-controlled valve?

• Fast response times: Air control valves are known for their fast response times, which make them ideal for applications where quick, precise control is required.
• Precision: Air control valves offer precise control over the flow of fluid, making them ideal for applications that require high accuracy.
• Reliability: Air control valves are typically very reliable and can operate for extended periods of time without requiring maintenance.
  Safety: Air-controlled valves can be operated remotely, which can help ensure the safety of personnel in hazardous environments.
• Versatility: Air control valves can be used to control the flow of a wide range of fluids, including liquids and gases.
