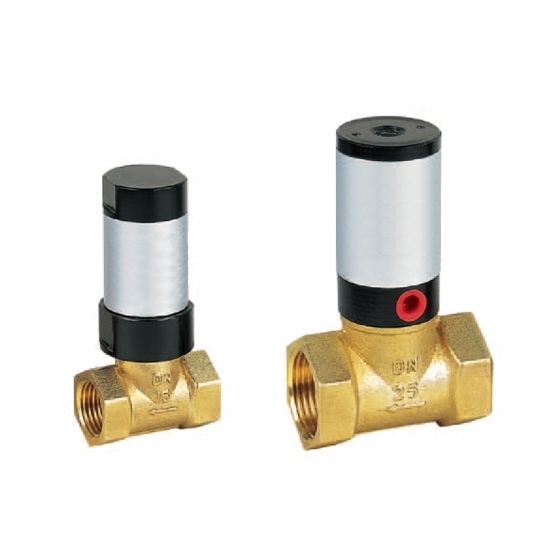

1/2" Air Control Valve, 2 Way, 2 Position

Note: This control valve cannot be used for drinking water.

Buy a cheap 1/2" (DN15) air control valve online, comes with a pneumatic actuator, optional VITON/PTFE sealing material and single acting/double acting types. 2 way pneumatic flow control valve is suitable for controlling the flow of fluids.

Specifications

• Model: ATO-Q22HD-15
• Nominal Diameter: DN15
• Connecting Thread: ZG1/2"
• Actuator: Pneumatic Actuator
• Type: 2 Way, 2 Position
• Product Form: Normally Closed
• Working Pressure: 0~1.0Mpa
• Valve Body Material: Brass
• Sealing Material: VITON/PTFE
• Medium Temperature: VITON: -5~150℃, PTFE: -10~180℃
• Flow Coefficient KV Value: 4
• Weight: 0.275kg
• Working Medium: Air, Water, Oil, Liquefied Petroleum Gas, and Fluid with Light Dynamic Viscosity

Dimensions (Unit: mm)

Applications

The air control valve has low starting pressure, high closing sensitivity, good sealing performance, and arbitrary import and export directions, widely used in food, medicine, industry, washing, petrochemical, metallurgy, spraying, vehicles and other mechanical equipment.

Tips: What is an air control valve?

An air control valve is a device used to regulate the flow of air in a pneumatic system. Pneumatic systems use compressed air to power mechanical devices, such as tools and machines, and the air control valve plays a critical role in managing the flow of this compressed air.

Air control valves come in many different types and sizes, but they all work by opening or closing a passageway to control the flow of air. Some air control valves are manually operated, while others are automated and controlled by an electronic or pneumatic signal.

Air control valves are used in a variety of applications, such as in manufacturing and automation, HVAC systems, and in the automotive industry. They are essential components in any pneumatic system and are critical to ensuring that these systems operate efficiently and safely.
