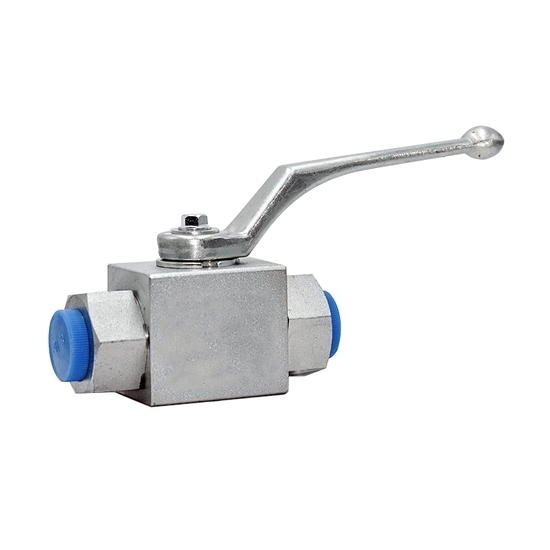

    3/4" Hydraulic High Pressure Ball Valve, 2 Way

    Low price 2 way hydraulic high pressure ball valve for sale, with G3/4 inch thread port. This high pressure ball valve is a type of valve used in hydraulic systems to control the flow of fluids, typically at high pressures. It is designed to handle the demands of hydraulic applications, which often involve high pressures and fast flow rates.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    G3/4 inch hydraulic high-pressure ball valve is a type of valve designed for use in hydraulic systems where high-pressure fluids are involved. These 2 way ball valves are commonly used to control the flow of hydraulic fluids, such as oil, in various industrial and heavy-duty applications. They are specifically designed to handle high-pressure conditions and provide reliable fluid control.


    • Model: ATO-KHB-G3/4
    • Type: 2 Way High Pressure Ball Valve
    • Drive Mode: Hydraulic
    • Port Size: G3/4 inch (DN20)
    • Nominal Pressure: 315bar
    • Applicable Temperature: -29℃~120℃
    • Applicable Media: Water, Oil
    • Body Material: Carbon Steel

    Dimension (Unit: mm)

    Hydraulic high pressure ball valve dimension

    DN LW d1 i L L1 B H h1 h2 h3 SW1 SW2
    20 20 G3/4" 18 95 60 48 75 24 57 12 14 41


    Hydraulic high pressure ball valve application

    Tips: What is a hydraulic ball valve?

    A hydraulic ball valve is a type of control valve designed for regulating the flow of fluids, typically in hydraulic systems. It consists of a spherical ball with a hole or bore through the center, which can be rotated within the valve body to control the fluid flow. When the ball is positioned to align with the flow, the valve is open, allowing fluid to pass through. Conversely, when the ball is rotated 90 degrees to block the flow path, the valve is closed.

    Hydraulic ball valves are popular in hydraulic applications due to their durability, reliability, and ability to provide precise control over fluid flow. They are often used in high-pressure systems where the efficient regulation of hydraulic fluid is critical. These valves are available in various materials and configurations to suit different operational requirements, making them a versatile choice for a wide range of industrial and hydraulic applications.
