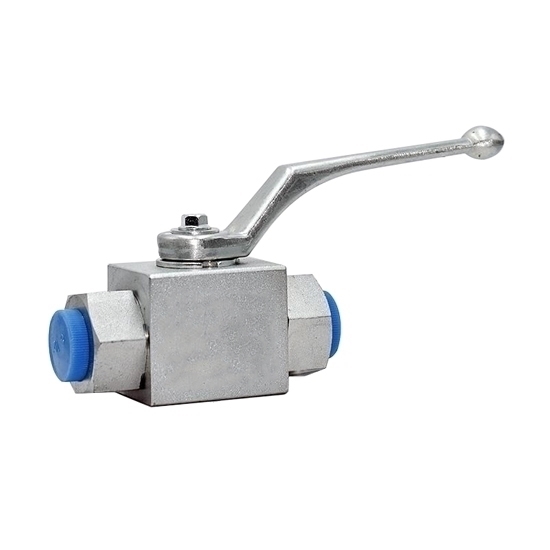

2" Hydraulic High Pressure Ball Valve, 2 Way

G2 inch hydraulic high pressure ball valve is a type of valve used in hydraulic systems to control the flow of fluids under high pressure. It consists of a spherical closure element (the ball) with a hole through it that can be rotated to either allow or block the flow of fluid. The 2 way ball valve is operated by a lever, handle, or actuator that turns the ball to open or close the valve.

Specification

• Model: ATO-KHM-G2
• Type: 2 Way High Pressure Ball Valve
• Drive Mode: Hydraulic
• Port Size: G2 inch (DN50)
• Nominal Pressure: 315bar
• Applicable Temperature: -29℃~120℃
• Applicable Media: Water, Oil
• Body Material: Carbon Steel

Dimension (Unit: mm)

Application

Tips: Can you adjust flow with a hydraulic ball valve?

Yes, a hydraulic ball valve can be used to adjust the flow of fluid within a hydraulic system. A hydraulic ball valve is a type of quarter-turn valve with a spherical disc that controls the flow of fluid through the system. By rotating the handle or actuator connected to the ball valve, you can vary the position of the disc. This movement either allows or restricts the flow of hydraulic fluid, thus enabling flow control.

The degree of flow adjustment achievable with a hydraulic ball valve depends on the valve's design and specifications. Some ball valves are designed for on/off applications, while others are more suitable for precise flow control. When used for flow control, it's important to consider the valve's size, type, and the pressure of the hydraulic system to ensure that it can provide the desired level of adjustment without causing excessive pressure drop or leakage.
