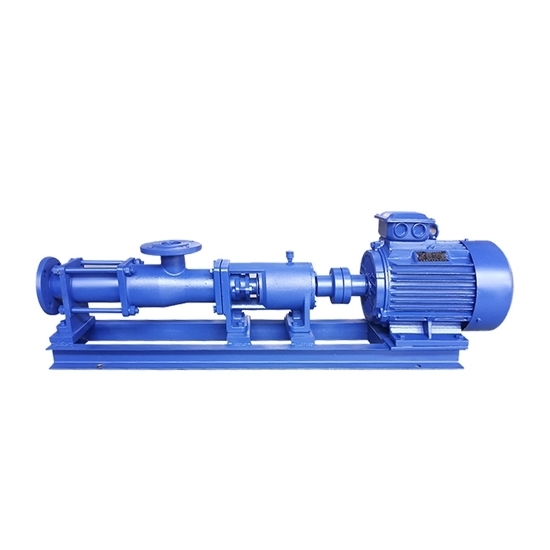

    3 hp (2.2 kW) Screw Pump, 380V

    $2,295.13
    Cost-effective mono screw pump with 3 hp power and 380V voltage for sale. 3 hp screw type pump adopts stainless steel material. Rotor of screw pump is polished processing, convenient installation and durable. Pure copper wire configuration, slurry screw pump under the bass smooth operation.
    SKU: ATO-SP-3HP
    Free Shipping Worldwide
    Delivery date: 10-12 days

    Stator of a variety of elastic material, so this kind of pump for high viscosity fluid conveying and containing hard suspended particles of medium or medium containing fiber conveyor, have a general pump of the characteristics of the incompetent.

    Features:

    • Small mechanical vibration, no pulsation, stable operation.
    • Besides can transport all kinds of fluid medium, can also transport high viscous medium.
    • Flow is proportional to speed, with the help of the governor can realize the amount of automatic regulation.

    Specification:

    • Model: G25-2
    • Voltage: 380V
    • Power: 3 hp (2.2 kW)
    • Flow Rate: 2 m3/h
    • Pressure: 1.2 MPa
    • Max Speed: 960 r/min
    • NPSH: 4m
    • Suction Flange Diameter: 40 mm
    • Discharge Flange Diameter: 32 mm
    • Max Granule Size: 2 mm
    • Max Fibre Size: 30 mm

    Structure:

    Screw pump structure

    1. outlet 2. pull bar 3. stator 4. screw shaft
    5. gimbal 6. inlet 7. connect shaft 8. stuff seat
    9. stuff gland 10. bearing house 11. bearing 12. gearing shaft
    13. bearing cover 14. coupling 15. base plate 16. motor

    Tips: Screw Pump Troubleshooting

    • Noisy operation. If your pump is making excessive noise, it could be due to worn bearings or misalignment of the screw or the shaft. Check to see if the bearings need to be replaced or if there is any misalignment in the pump components.
    • Leaking fluid. If you notice any fluid leaking from the pump, check the seals and gaskets to make sure they are not worn or damaged. Also, ensure that the pump is not overpressurized, as this can cause the seals to fail.
    • Overheating. If your pump is running too hot, check to make sure that the cooling system is functioning properly. Also, ensure that the pump is not being overloaded or that the motor is not running at too high of a speed.
