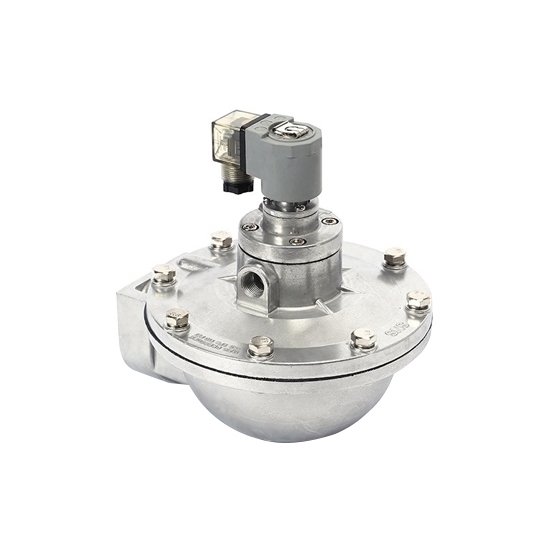

    3" Pulse Solenoid Valve for Dust Collector

    $171.79
    Factory price pneumatic pulse solenoid valve for dust collector, with G3 inch thread port, available in voltage of AC110V, AC220V, DC24V, coil power 20VA. This right angle air pulse valve is specifically designed for use in pulse jet dust collector and other dust filtration systems.
    *
    SKU: ATO-PULSE-76P
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    ATO pulse solenoid valve is a type of valve used in various industrial applications, particularly in systems that involve the control of gases, such as air or other gases. Pulse valves are commonly used in dust collection systems, baghouse filters, and similar applications to help clean and maintain the efficiency of these systems.

    Specification

    • Model: ATO-SMFZ-76P
    • Port Size: G3 inch
    • Connection Type: Threaded Type
    • Channel Position: Right Angle
    • Flow Direction: Unidirectional
    • Applicable Media: Air
    • Voltage (Optional): AC110V, AC220V, DC24V
    • Coil Power: 20VA
    • Temperature: -5~60℃
    • Working Pressure: 0.3~0.8MPa
    • Max. Pressure: 1.0MPa
    • Relative Humidity: ≤80%RH
    • Diaphragm Life: More Than 1 Million Times
    • Material: Aluminum Alloy (Body), NBR (Seal)

    Dimension (Unit: mm)

    Dust collector pulse solenoid valve dimension

    Model Port Size A B C
    ATO-SMFZ-76P G3 inch 232 201 245

    Tips: Where are pulse valves used?

    Pulse valves are commonly used in industrial applications, particularly in systems that involve the control of air or gas flow. These valves operate based on a pulsed or intermittent flow of compressed air and are primarily found in applications such as dust collection systems, pneumatic conveying systems, and air filtration units.

    • Dust Collection Systems: Pulse valves are a critical component in dust collectors, where they help clean filters by releasing short bursts of compressed air to dislodge accumulated dust and particulate matter. This ensures efficient filtration and prolongs the life of filter elements.
    • Pneumatic Conveying Systems: Pulse valves play a vital role in pneumatic conveying systems, used to transport bulk materials like powders and granules. They help regulate the flow of air and maintain system efficiency.
    • Air Filtration Units: In various industrial processes, air filtration units employ pulse valves to ensure clean air by periodically cleaning filter media.

    Overall, pulse valves are essential in environments where controlled bursts of compressed air are required to maintain system performance, particularly in the presence of dust and particulate pollutants.
