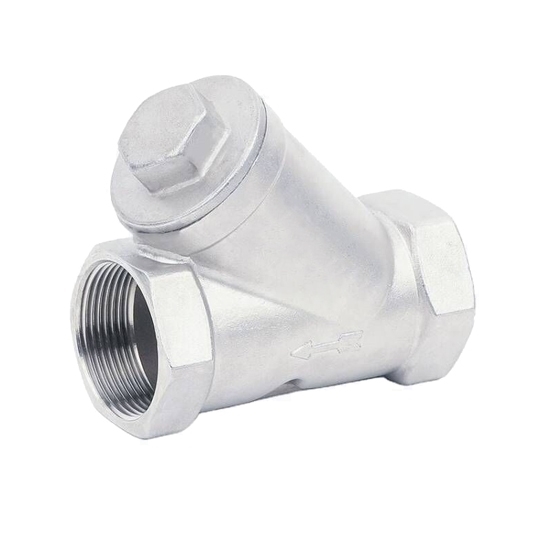

    4 inch Stainless Steel Y Strainer

    5 out of 5 based on 1 reviews | Write a review
    $231.91
    Buy a 4 inch (DN100) Y strainer at low price. 800PSI working pressure, SS 304/316 material and BSP/ BSPT/ NPT thread standard. Durable stainless steel y-type filter is a popular choice for industrial applications.
    *
    *
    SKU: ATO-SSYS-100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    4" (DN100) stainless steel Y strainers for sale online. It is a y-type filter with 800PSI working pressure, SS 304/316 material and optional BSP, BSPT, NPT thread standards, can be used to remove unwanted particles, debris and other impurities.

    Specifications

    • Model: ATO-T11F-800WOG (P/R)
    • Type: Y Type Strainer
    • Nominal Diameter: 4 inch (DN100)
    • Working Pressure: 800PSI
    • Product Material: 304/316 Stainless Steel
    • Connection Form: Thread
    • Thread Standard: BSP, BSPT, NPT
    • Temperature Range: -20°C~180°C
    • Weight: 6.095kg

    Dimensions (Unit: mm)

    Stainless steel Y strainer dimension

    Main Part Materials
    NO. Part Name Materials QTY
    1 BODY CF8/CF8M 1
    2 FILTER S304/S316 1
    3 JOINT GASKET PTRE/RPTFE 1
    4 CAP CF8/CF8M 1
    Dimension (Unit: mm)
    DN D L±1.5 H
    100 86 234 165


    Applications

    Y-type strainers can remove impurities, debris, and solid particles from fluid or gas pipelines in industrial and commercial applications. They are typically used in applications where a high flow rate is required, and where there is a risk of damage to equipment or processes from the presence of solid particles.

    Stainless steel Y strainer applications

    Tips: Why use a Y-type strainer?

    A Y-type strainer is used to remove unwanted debris and particles from fluid pipelines. These particles can come from a variety of sources, such as rust, sediment, dirt, or other foreign materials. If left unchecked, these particles can cause damage to downstream equipment, such as pumps, valves, and heat exchangers, and can also negatively impact the quality of the fluid being processed.

    By installing a Y-type strainer in the pipeline, the unwanted debris and particles are caught in the strainer's filter element, preventing them from reaching downstream equipment. This helps to protect equipment from damage, reduce maintenance costs, and extend the lifespan of the system.

    Existing reviews of 4 inch Stainless Steel Y Strainer
    About the filter size
    Hello, I would like to know the filter size of this filter.
    From: Temir | Date: 24/03/2025
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The mesh size of this filter SKU: ATO-SSYS-100 is 80 mesh.
