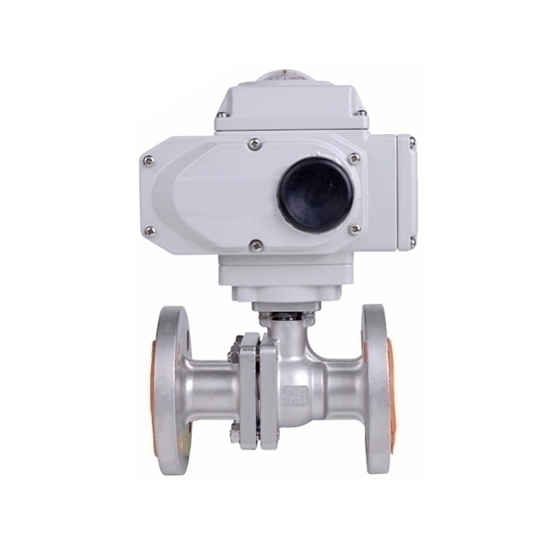

5" Electric Flanged Ball Valve, 2 Way/ 3 Way

Write a review

$1,726.99

5 inch stainless steel flanged ball valve with electric actuator for sale, factory price and high performance. Industry electric actuated ball valve with 2 way or 3 way available for air, water, liquid and other flow control, DN125 flanged port, PTFE seat, working at 110V AC, 220V AC, 380V AC, and 24V DC power supply.

Port *
Flow Type *
Power Supply *

SKU: ATO-EBV-125B

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Documents
Proposition 65 Warning

Note: This ball valve cannot be used for drinking water.

Electric actuated ball valve is composed of a stainless steel ball valve and an aluminum alloy electric actuator. It is high performance and reliable for controlling air, water, oil, gas, liquid, etc.

Specification

Ball Valve	Model	ATO-EBV-125B
	Port Size	5 inch (DN125, 125mm)
	Ball Valve Type (Optional)	2 Way Flanged Type				3 Way Flanged Type
	Body Material	Stainless Steel (SS 316/ 304)
	Seat Material	Plastic (PTFE)
	Environment Temperature	-10°C to 60°C
	Medium Temperature	-10°C to 180°C
	Medium Pressure	1.6MPa
Electric Actuator	Model	ATO-KLST-60				ATO-KLST-100
	Power (Optional)	AC 24V	AC 110V	AC 220V	AC380V	AC 24V	AC 110V	AC 220V	AC380V
	Motor Power	70W	90W	90W	90W	100W
	Rated Current	6.04A	1.18A	0.6A	0.29A	9A	2.2A	1A	0.48A
	Output Torque	600Nm				800/1000Nm
	Motion Time	45s				30/50s
	Circuit Control	S Type (Default), B Type, R Type, H Type, A Type, K Type, D Type, T Type				S Type (Default), B Type, R Type, H Type, A Type, K Type, D Type, T Type
	Scope of Rotary Angle	0~90°				0~90°
	Machine Weight	9kg				11.2kg
	Voltage with Standing Value	DC24V: 500VAC, AC110/220V: 1500VAC, AC380V: 1800VAC (1 Minute)				AC 110V/AC220V: 1500VAC, AC380V: 1800VAC (Minute)
	Insulated Resistance	DC24V: 100/250VDC AC110/220V/380V: 100/500VDC				100MΩ/VDC
	Protection Class	IP68				IP68
	Surrounding Temperature	-30℃~60℃				-30℃~60℃ (The custom-made according to the other temperature)
	Installation Angle	Rotary 360°				Rotary 360°
	Case Material	/				Aluminum Die-casting Components

Note: 2 way flanged ball valve match with ATO-KLST-60 electric actuator, and 3 way flanged ball valve matches with ATO-KLST-100 electric actuator.

2 Way/ 3 Way Flanged Ball Valve Body Dimension (Unit: mm)

2 way / 3 way stainless steel flanged type electric ball valve dimension

DN	L1	T	f	D	B	C	H1	H2	A1	A2	L2	N-M
125	320	22	3	245	185	210	420	345	255	255	380	8-φ18

Three Way Ball Valve Flow Pattern

T Type:

3 way pneumatic ball valve flow patterns t port

L Type:

3 way pneumatic ball valve flow patterns l port

Tips: How to repair and maintain an electric flanged ball valve?

When the electric flanged ball valve is dismantled, write steel letters on the electric flanged ball valve and the flange connected to the electric flanged ball valve, mark the professional maintenance item number, and record the working environment medium, work and life pressure and temperature during work, so that materials with corresponding improvement can be selected when repairing in time.
It is required to repair the electric flanged ball valve in a clean environment. First, clean the outer surface of the flanged ball valve with compressed air or kerosene. Then remove other parts of the electric flange ball valve, clean with kerosene, check the damage of other parts, and make a record.
Test the strength of the valve body and bonnet. If it is a high-pressure electric flanged ball valve, non-destructive testing, such as ultrasonic testing and x-ray testing, should be carried out.
Check the sealing ring with available powder and check the fit of the valve seat and gate (valve disc). Check the stem for bendability, corrosion, threads, and wear. Check stem nuts for severity of wear.
When reassembling the electric flanged ball valve, the gasket and filler should be replaced.

Electric Actuator Instruction.pdf
