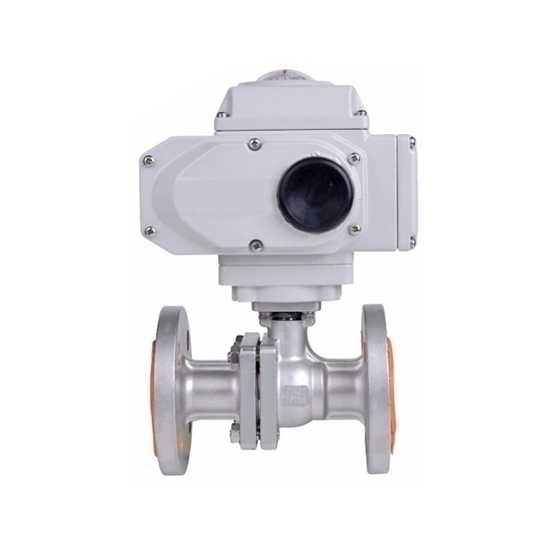

6" Electric Flanged Ball Valve, 2 Way/ 3 Way

Write a review

$3,281.54

Industrial 6 inch stainless steel ball valve is equipped with an aluminum alloy electric actuator to work, working at 50/ 60Hz 110V AC, 220V AC, 380V AC, and 24V DC power supply. Factory price electrically operated ball valve with DN150 flanged port and PTFE seat, 2 way or 3 way available, suitable for water, oxygen, gas, nitrogen gas, gasoline and other air and fluid control.

Port *
Flow Type *
Power Supply *
Power Supply *

SKU: ATO-EBV-150B

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Documents
Proposition 65 Warning

Note: This ball valve cannot be used for drinking water.

Heavy duty 6 inch electric actuated flanged ball valve comes with stainless steel material, which is widely used for controlling water, gas, oxygen and other air and fluid in petroleum, chemical industry, power generation, paper making, atomic energy, aviation, rocket and other sectors, as well as daily life.

Specification

Ball Valve	Model	ATO-EBV-150B
	Port Size	6 inch (DN150, 150mm)
	Ball Valve Type (Optional)	2 Way Flanged Type				3 Way Flanged Type
	Body Material	Stainless Steel (SS 316/ 304)
	Seat Material	Plastic (PTFE)
	Environment Temperature	-10°C to 60°C
	Medium Temperature	-10°C to 180°C
	Medium Pressure	1.6MPa
Electric Actuator	Model	ATO-KLST-100				ATO-KLST-200
	Power (Optional)	AC 24V	AC 110V	AC 220V	AC380V	AC 24V	AC 110V	AC 220V	AC380V
	Motor Power	100W				100W
	Rated Current	9A	2.2A	1A	0.48A	9A	2.2A	1.2A	0.48A
	Output Torque	800/1000Nm				2000Nm
	Motion Time	30/50s				100s
	Circuit Control	S Type (Default), B Type, R Type, H Type, A Type, K Type, D Type, T Type
	Scope of Rotary Angle	0~90°
	Machine Weight	11.2kg				11.8kg
	Voltage with Standing Value	AC 110V/AC220V:1500VAC, AC380V:1800VAC (Minute)
	Insulated Resistance	100MΩ/VDC
	Protection Class	IP68
	Surrounding Temperature	-30℃~60℃ (The custom-made according to the other temperature)
	Installation Angle	Rotary 360°
	Case Material	Aluminum Die-casting Components

Note: 2 way flanged ball valve match with ATO-KLST-100 electric actuator, and 3 way flanged ball valve matches with ATO-KLST-200 electric actuator.

2 Way/ 3 Way Flanged Ball Valve Body Dimension (Unit: mm)

2 way / 3 way stainless steel flanged type electric ball valve dimension

DN	L1	T	f	D	B	C	H1	H2	A1	A2	L2	N-M
150	360	24	3	280	140	210	445	430	255	280	440	12-φ18

Three Way Ball Valve Flow Pattern

T Type:

3 way pneumatic ball valve flow patterns t port

L Type:

3 way pneumatic ball valve flow patterns l port

Tips: Advantages of 3 way electric actuated ball valve

The electric 3 way ball valve has both switch-off and intelligent proportional adjustment functions, which can not only cut off the fluid, but also adjust parameters such as pressure, flow and temperature.
There are many functions available, which can be distributed and reversed. It is suitable for the proportion adjustment and control of liquid, gas, steam and other media.
This valve can be used for multiple purposes. It can be made into either an L-type port or a T- type port.
It can be divided into electric flanged 3 way ball valve and electric threaded 3 ay ball valve, which can meet the connection of pipelines in different working conditions.

Electric Actuator Instruction.pdf
