    500W 160KV 12S Waterproof Brushless DC Motor, IP68

    $154.15
    Good price waterproof brushless DC motor for underwater working. Rated power 500W, speed 160KV, power supply 12S batteries (input DC 44V), rated voltage 24V, waterproof grade IP68, hole diameter 35mm, thrust 5kg. Waterproof BLDC motor for direct-drive propeller/Efoil electric surfboard use, matching ESC controller is recommended.
    SKU: ATO-BLDC-WP500
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Buy 160KV outrunner brushless DC motor at competitive price, IP68 waterproof, max power 500W, input voltage 12S (DC 44V). Waterproof BLDC motor kit (electric motor + ESC controller) best for surfboard, propeller, robot model and other underwater works. Usually, ATO recommends buying a kit of 0.5kW brushless motor.

    Specification

    Model ATO-5062
    Max Power 500W
    Rotation Speed KV (RPM/V) 160KV
    Max Input Voltage* DC 44V
    Rated Voltage 24V
    No-Load Current <1A
    Maximum Load Current 30A
    Motor Dimension 50*62mm
    Trust 5kg
    Hole Distance φ 35mm
    Screw Holes 4 × M4
    Waterproof Grade IP68
    Motor Wire 12AWG

    *Note: The motor is powered by 12S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

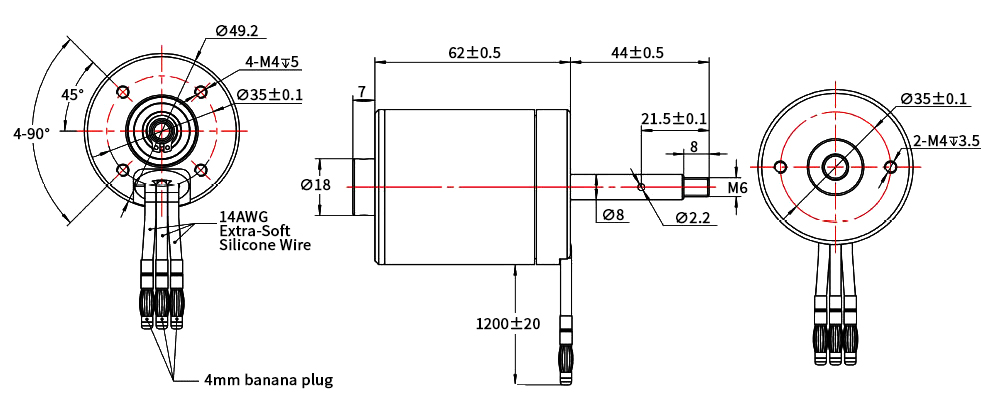

    Waterproof Brushless DC Motor Dimensions Drawing (Unit: mm)

    DImensions of 500W 160KV 12S Waterproof Brushless DC Motor, IP68

    ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor

    • The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
    • Brushless DC motor speed calculation formula: battery voltage * motor KV value.
      Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
    • The limit speed of V4 series ESC is 60000 ERPM.
      The limit speed of V6 series ESC is 15000 OERPM.
    • If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.

    ESC (Electronic Speed Controller) Specification

    Model Current Value Number of Batteries (Input Voltage)
    FSESC 4.12 Continuous 50A, peak 240A 3S-12S (8V-60V)
    FSESC 4.20 Continuous 50A, peak 240A 3S-12S (8V-60V)
    VESC 6.6 mini dual drive 1-channel 100A continuous, 2-channel 200A continuous
    1-channel peak 400A, 2-channel total peak 800A
    3S-12S (8V-60V)
    VESC6.6 integrated switch dual drive version 1-channel 100A continuous, 2-channel 200A continuous
    1-channel peak 400A, 2-channel total peak 800A
    3S-12S (8V-60V)
    FSESC6.6 VESC6.6 single drive integration Continuous 60A, peak 150A 3S-12S (8V-60V)
    VESC4 dual drive integration 50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel 3S-12S (8V-60V)
    ODESC3.6 single drive/dual drive 50A continuous 1-channel, peak 120A 1-channel 3S-12S (8V-60V)
    VESC6 dual drive 1-channel 100A continuous, 2-channel 200A continuous
    1-channel peak 400A, 2-channel total peak 800A
    3S-12S (8V-60V)
    Single drive V6 75200 Continuous 200A 3S-12S (8V-60V)
    Single drive VESC6 waterproof version* Continuous 60A, peak 150A 3S-12S (8V-60V)

    *Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

    Tips: Precautions for using waterproof brushless DC motor.

    1. When the service life of waterproof brushless DC motor bearings expires, vibration and noise of the motor will increase significantly. At this time, check the radial clearance of the bearing and replace the bearing in time.
    2. When disassembling the waterproof BLDC motor, rotor can be taken out from the shaft extension or non-extended end. If the fan is not removed, the rotor should be removed from the non-shaft extension end. When extracting the rotor from the stator, prevent damage to the stator winding or insulation.
    3. When replacing the winding, note down the form, size, number of turns and wire gauge of the original winding. If these data are lost, they should be obtained from the manufacturer. Changing the original design windings at will can easily deteriorate the performance of one or several items of the waterproof brushless DC motor, or even make it impossible to use.
