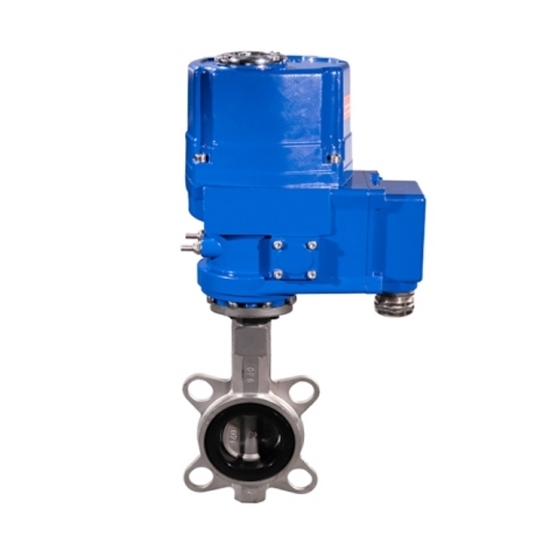

    6" Explosion Proof Stainless Steel Butterfly Valve

    Crafted from high-quality stainless steel (CF8, CF8M), 6" stainless steel butterfly valve ensures reliable and secure control of water, liquids, gas, oil, powder, steam, and acid-base corrosive substances. With a PN1.0 pressure rating and a resilient seat material (PDEM) capable of handling temperatures from -10℃ to 120℃.
    30-day Returns
    Free Shipping
    Delivery date: 7-10 days

    Available in single-phase AC220V or three-phase AC380V, crafted from high-quality stainless steel (CF8, CF8M) with a wafer connection, this valve is designed to withstand varying pressure conditions (PN1.0) and ensures secure control of water, liquids, gas, oil, powder, steam, and corrosive substances.


    • Manual and automatic integration: Electric and manual can control the valve switch. Respond to power outages by manually controlling the switch.
    • New electric head: Accurate control of media flow with precise scales, smaller size and easier wiring.
    • Stainless steel body: high-quality leak-proof seal.


    Actuator Technical Parameters

    Input & Output Signal  DC 4-20mA, DC 0-10V, DC 1-5V (Optional)
    Optional Voltage Single Phase AC220V 50/60 Hz or Three Phases AC380V 50/60 Hz

    2 inch Stainless Steel Butterfly Valve, Explosion Proof Parameters

    Size DN150
    Body Material Stainless Steel (CF8, CF8M)
    Connection Type Wafer
    Pressure Rating PN1.0
    Structure Type Median line
    Seat Material PDEM: -10℃ ~120℃
    Disc Material Stainless Steel (CF8, CF8M)
    Stem Material Stainless Steel (CF8, CF8M)
    Power Supply single phase AC220V, 50/60 Hz or three phases AC380V, 50/60 Hz
    Applicable Medium Water, Liquids, Gas, Oil, Powder, Steam, Acid-base Corrosive Medium.


    2 inch stainless steel butterfly valve, explosion proof

    DN Inch D D1 D2 L H n-φd
    150 6" 150 206 240 54 296 4-φ23

    Tips: What does "explosion-proof" mean in 6" stainless steel butterfly valve?

    • Hazardous Environments: The designation "explosion-proof" is particularly relevant in industries where flammable substances such as gases, vapors, or combustible dust are present. This includes industries like petrochemical, chemical, oil and gas, and certain manufacturing processes.
    • Preventing Ignition: The valve is constructed and engineered to prevent sparks, arcs, or any other potential sources of ignition that could lead to an explosion in the surrounding atmosphere. This is crucial for ensuring the safety of both equipment and personnel.
    • Robust Construction: Explosion-proof valves are built with robust materials and construction techniques. In the case of the 6" Stainless Steel Butterfly Valve, the stainless steel material enhances durability and corrosion resistance, making it suitable for harsh industrial environments.
    • Sealed Design: The valve is designed to be sealed tightly to prevent the entry of explosive gases or dust into its internal components. This helps in containing any potential sources of ignition within the valve itself.
