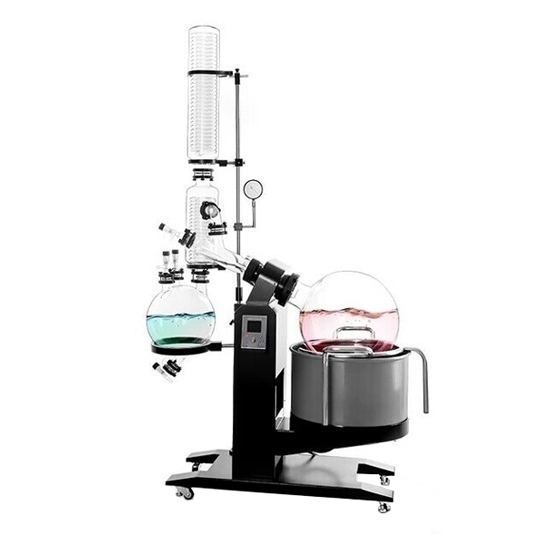

    6L Rotary Vacuum Evaporator, 10-150 rpm

    The electric lift rotary evaporator is a device for chemical laboratories, the rotary evaporator is equipped with a 6L rotating bottle and a 3L collection bottle, speed adjustment range of 10-150 rpm. Buy an advanced rotary vacuum evaporator to improve the efficiency of your lab.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The low price rotary vacuum evaporator is a kind of equipment used in chemical laboratories. Evaporation capacity of 50ml/min, speed range of 10-150rpm. This 6L rotary flask and high efficiency vacuum system promote rapid evaporation, allowing you to process larger volumes in less time.


    Model ATO-RE-6000AT
    Speed Adjustment Range 10-150 rpm
    Evaporation capacity 50 ml/min
    Achievable Cacuum -0.095 MPa or less
    Temperature Adjustment Range Room temperature -99/180°C
    Temperature Setting Display Key input, digital display
    Speed Setting Display Button setting, digital display
    Safety Function Fuse
    Lift Function Manual lift
    Rotary Motor 60W
    Heating Power 2kW
    Condenser Vertical double serpentine condenser
    Condensation Area 0.5m2
    Evaporation Speed >3L/h H20
    Spinner Bottle 6L
    Collection Bottle 3L/Discharge material
    Vacuum Seal PTFE+Teflon combined seal
    Water Bath Size 300*170mm
    Lifting Stroke 100-180mm
    Applicable Smbient Temperature 5-35°C
    Power Supply Voltage 220V/50Hz
    Dimension 730*400*1150m
    Weight 41kg


    • PTFE and fluororubber dual sealing ensure high vacuum degree.
    • The exhaust nozzle of the condenser is positioned below for safer connection with the vacuum tube.
    • The rotary vacuum evaporator has a modular design with strong scalability.
    • Convenient lifting operation to avoid movement of the glass parts, ensuring safety and ease of use.
    • The rotational speed and bath temperature are displayed digitally and controlled by PID for high temperature control accuracy.
    • The bath is separated from the 6L rotary evaporator, allowing flexible configuration.


    Rotary evaporators are commonly used in laboratories and industries for efficient solvent evaporation and concentration processes, such as in pharmaceutical research, chemical synthesis, and essential oil extraction.

    Rotary evaporator applications

    Tips: Can a rotary evaporator handle flammable solvents?

    Yes, a rotary evaporator can handle flammable solvents, but caution must be exercised to ensure safety. A rotary evaporator is commonly used for solvent evaporation in laboratory settings, and it can accommodate a wide range of solvents, including flammable ones. However, certain precautions should be taken to mitigate the risk of fire or explosion:

    1. Use in a well-ventilated area: Ensure that the rotary evaporator is operated in a fume hood or a well-ventilated space to minimize the accumulation of flammable vapors.
    2. Follow manufacturer guidelines: Adhere to the manufacturer's instructions for operating the rotary evaporator, including any specific safety precautions mentioned in the user manual.
    3. Grounding and electrical safety: Ensure that the rotary evaporator is properly grounded and that all electrical connections are secure. This helps prevent sparks that could ignite flammable vapors.
    4. Use appropriate glassware: Employ glassware that is designed for use with flammable solvents. Some manufacturers offer specialized glassware that provides additional protection against potential accidents.
    5. Temperature control: Maintain low temperatures and use appropriate bath fluids to reduce the risk of vapor ignition. Flammable solvents should be evaporated at temperatures below their flash points to minimize the potential for ignition.
    6. Fire safety equipment: Have fire extinguishers or other suitable fire safety equipment readily available in case of emergencies.
    7. Operator training: Ensure that the operators are adequately trained in the safe operation of the rotary evaporator and are aware of the hazards associated with flammable solvents.

    It is important to consult the specific instructions provided by the manufacturer of the rotary evaporator to ensure safe and appropriate use with flammable solvents. Additionally, local safety regulations and guidelines should be followed to minimize the risk of accidents.
