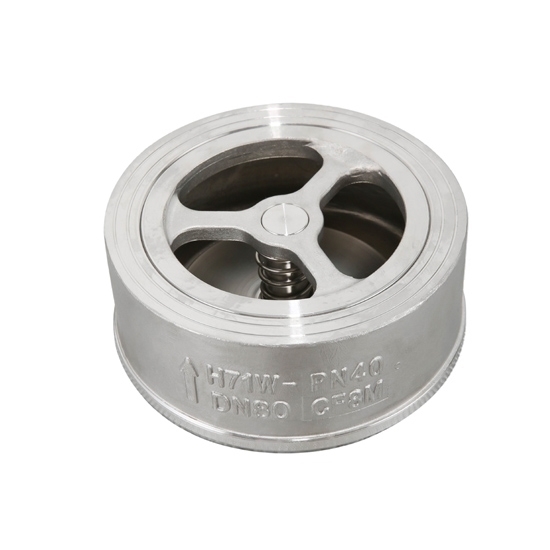

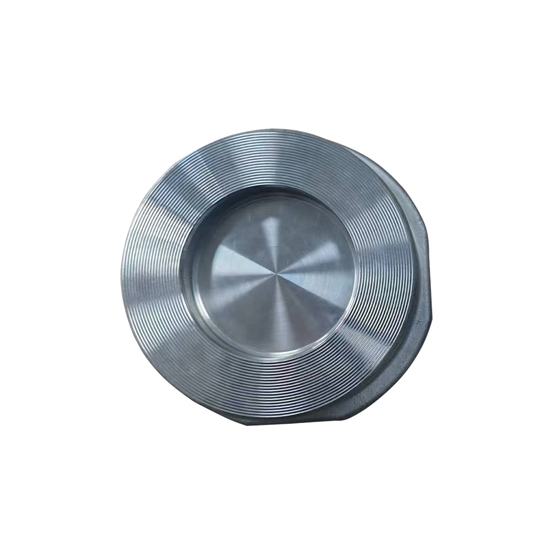

    8" Stainless Steel Wafer Check Valve

    5 out of 5 based on 1 reviews | Write a review
    Cheap 8 inch stainless steel wafer check valve is a non-return valve that regulates and controls the flow of water/oil/gas through a pipeline while preventing backflow. High quality 200mm wafer check valve is often used in space-constrained applications such as HVAC systems, water treatment plants, and industrial processes.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    8" stainless steel check valve with DN 200 and PN 4MPa can be installed in tight spaces. Quality wafer disc check valve is designed to make fluid or gas flow in one direction while preventing backflow in the opposite direction.


    • Model: ATO-H71W
    • Check Valve Type: Wafer
    • Nominal Diameter: 8 inch (200mm)
    • Nominal Pressure: 4 MPa
    • Product Material: 304/316 Stainless Steel
    • Connection Form: Clip
    • Temperature Range: -20°C~180°C
    • Weight: 12kg
    • Applicable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid


    Wafer check valve dimensions

    Main Part Materials
    NO. Part Name Materials QTY
    1 BODY CF8/CF8M 1
    2 DISC CF8/CF8M 1
    3 SPRING S201/S304 1
    4 CAP CF8/CF8M 1
    Dimension (Unit: mm)
    Φd D D1 L±1.5
    180 260 270 105


    Wafer check valve is a type of check valve that is used to regulate and control the flow of fluids through pipelines while preventing backflow. High quality wafer check valve is typically used in applications where space is limited, such as in HVAC systems, water treatment plants, and industrial processes.

    Wafer check valve application

    Tips: What is a stainless steel wafer check valve?

    A stainless steel wafer check valve is a type of valve used in piping systems to prevent backflow of fluids. It is called a "wafer" valve because it is installed between two flanges, with the valve body sandwiched between them.

    The valve itself consists of a stainless steel body and a movable disc, which is typically made of a durable and corrosion-resistant material such as stainless steel, bronze, or PVC. The disc is held in place by a spring or hinge mechanism, and when fluid flows through the valve in the forward direction, the disc lifts and allows the fluid to pass through. However, when the flow reverses, the disc is pushed back into place by the spring or hinge, creating a seal that prevents backflow.

    Stainless steel wafer check valves are commonly used in applications where backflow prevention is critical, such as in water treatment plants, sewage systems, and chemical processing plants. They are typically compact and lightweight, which makes them easy to install and maintain. Additionally, stainless steel is a highly durable and corrosion-resistant material that can withstand harsh environments and aggressive fluids, which makes it a good choice for applications where reliability and longevity are important.

    Existing reviews of 8" Stainless Steel Wafer Check Valve
    Suitable for pipeline
    I recently installed a 8 inch wafer check valve on my oil pipeline and it has been working perfectly. It provides excellent flow control and is a great choice for any oil or gas pipeline.
    From: Matthew | Date: 28/03/2023
    Was this review helpful? Yes No (0/0)
    Load more reviews...
