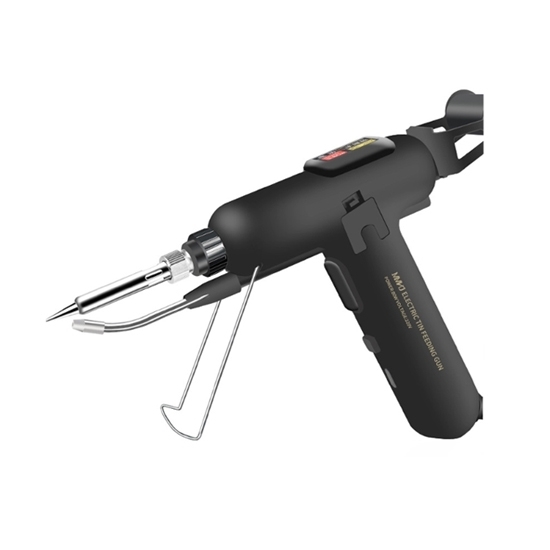

80W Automatic Electric Soldering Gun

Buy a low price 80W electric soldering gun, the soldering iron heats up quickly and can reach temperatures of up to 550°C. Handheld automatic electric soldering iron tools are available for your daily work and hobby requirements such as electrical repairs, home improvements and other soldering projects.

Specification

• Model: ATO-SD-E80W
• Power: 80W
• Working Temperature: 550 °C
• Voltage: 110/220V
• Power Plug: Euro/US/UK/AU
• Power Switch: Yes
• Indicator Light: Yes
• Dimension: 240* 145* 32mm
• Applicable Wire Diameter: 0.5mm~1.2mm
• Weight: 0.23kg

Details

Usage Introduction

1. Attaching the solder wire to the holder.
2. Pass the wire through the soldering gun.
3. Secure the holder.
4. Check that the wire flows smoothly.
5. Connect to the power supply and check that the indicator light is on.
6. Complete the steps and start soldering.

Sockets

Applications

Soldering guns are widely used in the manufacture and repair of electronic devices, such as computers, radios, and televisions. They are also used in automotive and industrial settings, where they are used to repair electrical wiring, circuit boards, and other components. Additionally, soldering guns are used in jewelry making and metalworking, where they are used to join metal components together for decorative and functional purposes.

Tips: How does a solder gun work?

A solder gun works by using an electric current to heat up a metal tip, which is then used to melt a soft metal alloy called solder. The solder is applied to the joint between two metal parts, where it cools and hardens, creating a strong bond. The solder gun typically has a trigger that controls the flow of current and heats up the tip of the gun. Some solder guns may also have adjustable temperature settings to control the heat output. The tip of the gun is usually made of copper or other metals that conduct heat well and are durable enough to withstand the high temperatures needed for soldering.
