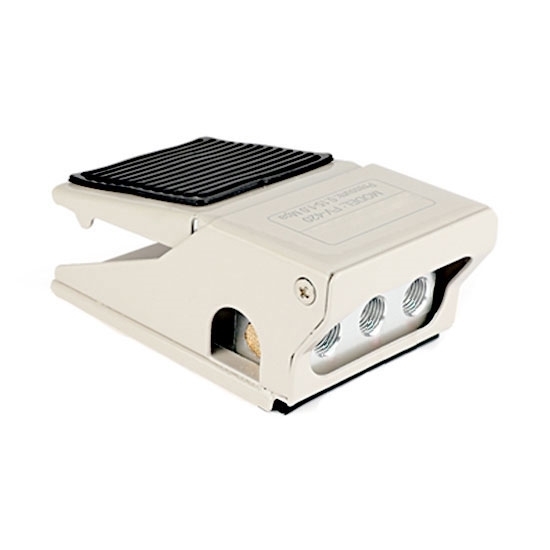

Pneumatic Foot Pedal, 4 Way 2 Position

The most favorable pneumatic foot valve is equipped with muffler to reduce noise, 4-way 2-position, operating pressure range. 0~0.8 MPa, widely used in various pneumatic systems.

Specification

• Model: ATO-FV420
• Working Medium: Air
• Action Mode: Foot control direct action
• Port Size: PT 1/4
• Number of Positions: 4 Way 2 position
• Operating Pressure Range: 0~0.8 MPa (0~114 psi)
• Pressure Resistance: 1.5 MPa (215 psi)
• Working Temperature: -20~70℃
• Material: Aluminum alloy
• Weight: 490g

Features

• Aluminum pedal, surface oxidation, corrosion resistance and oxidation resistance.
• Direct-acting design, easy to operate, more stable and reliable, high-quality material, long service life.
• The internal thread of the pneumatic foot pedal valve is clear and standard, with good sealing performance, not easy to leak, and without burrs.
• Bold spring, good quality and durable, not easy to rust.

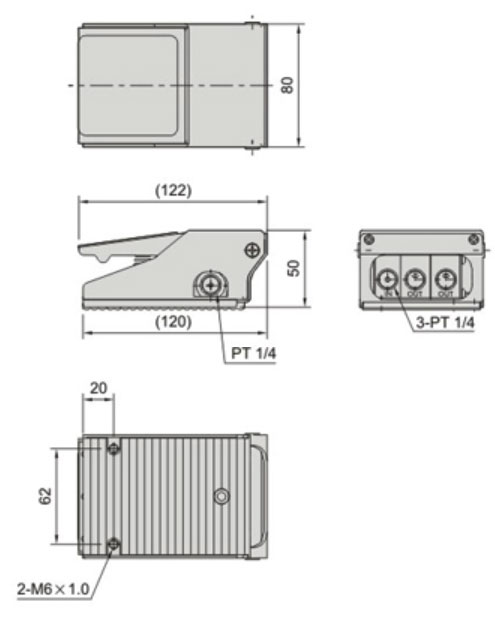

 4 Way 2 Position Pneumatic Foot Pedal Dimension

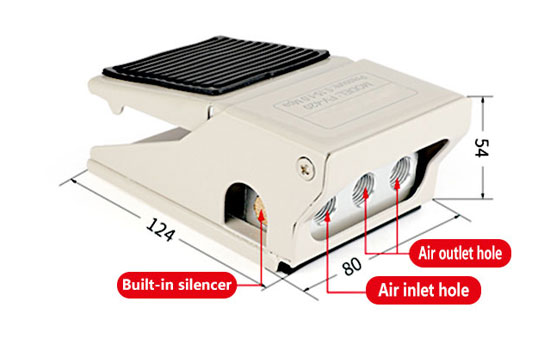

Pneumatic Foot Pedal Details

Tips: What is an electrical switch?

An electrical switch is a switching device that is powered by electricity. They can be push buttons, manual controls, foot switches or micro switches. They are used to make or break circuits (depending on whether they are normally open or normally closed). Essentially, electrical switches are used to turn equipment on or off.

Electrical switches can be activated manually or automatically depending on the application. They can also be contactless, using motion or wireless technology to activate.
